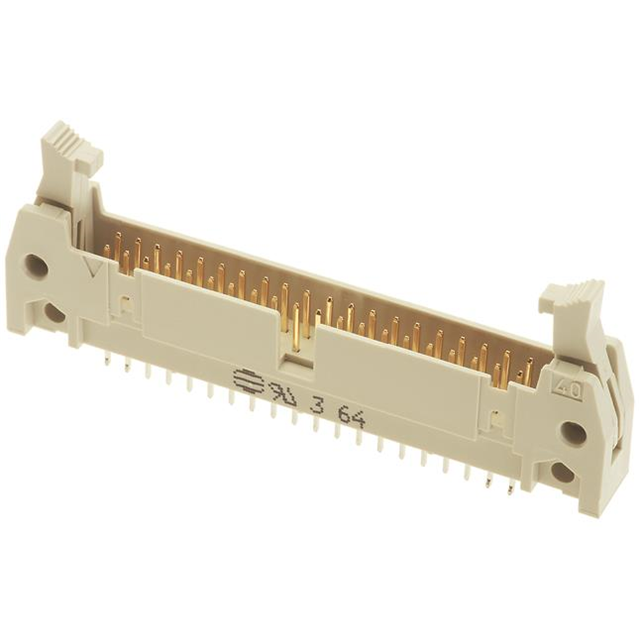

09195507014
Or copy the link below:
- Mfr.Part #
- 09195507014
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- SEK/IDC THR/SMC STRAIGHT MALE, 2
- Stock
- 46,050
- In Stock ：
- 46,050
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Terminal Pitch :
- 2.54mm
- Contact Finish Termination :
- TIN OVER NICKEL
- Operating Temperature (Max) :
- 125°C
- Mating Contact Pitch :
- 0.1 inch
- PCB Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL
- Total Number of Contacts :
- 50
- Insulation Material :
- Thermoplastic
- Reliability :
- COMMERCIAL
- Mounting Type :
- BOARD
- Length - Termination :
- 0.114 inch
- PCB Contact Row Spacing :
- 2.54 mm
- Body Length or Diameter :
- 3.272 inch
- Body Depth :
- 0.681 inch
- Termination Type :
- Solder
- RoHS Status :
- RoHS Compliant
- Mounting Style :
- Straight
- Contact Material :
- COPPER ALLOY
- Durability :
- 50 Cycles
- Connector Type :
- BOARD EURO CONNECTOR
- Rated Current (Signal) :
- 2A
- Mating Contact Row Spacing :
- 0.1 inch
- Operating Temperature (Min) :
- -55°C
- Mounting Option 2 :
- Latch
- Contact Resistance :
- 20mOhm
- Board Mounting Option :
- HOLE .099-.111
- Polarization Key :
- POLARIZED HOUSING
- Mounting Option 1 :
- LOCKING
- Number Of PCB Rows :
- 2
- Contact Style :
- SQ PIN-SKT
- Body Breadth :
- 0.335 inch
- Number of Conductors :
- ONE
- Number of Rows :
- 2
- Contact Gender :
- Male
- Contact Pattern :
- RECTANGULAR
- Datasheets
- 09195507014
2-Row BOARD EURO CONNECTOR COPPER ALLOY BOARD THERMOPLASTIC
09195507014 Overview
The packaging contains BOARD EURO CONNECTOR.There is a BOARD mounting type for the device.
09195507014 Features
09195507014 Applications
There are a lot of HARTING
09195507014 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
