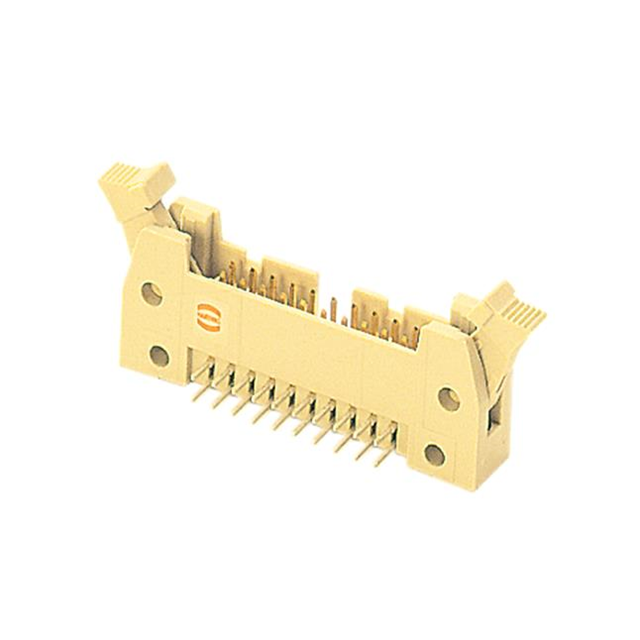

09195506913

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Style :

Board to Cable/Wire

Contact Length - Post :

0.114 2.90mm

IEC Conformance :

yes

Feature :

Keying Slot, Mounting Flange

RoHS Status :

ROHS3 Compliant

DIN Conformance :

yes

Number of Rows :

2

Packaging :

Bulk

Insulation Height :

0.335 8.51mm

Pbfree Code :

yes

Contact Shape :

Square

MIL Conformance :

No

Body Depth :

0.543 inch

Factory Lead Time :

7 Weeks

Number of Positions :

50

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.335 inch

Mounting Type :

Through Hole, Right Angle

Series :

SEK

Mount :

Through Hole

Reliability :

COMMERCIAL

Fastening Type :

Latch Lock/Eject Hooks, Short

Row Spacing - Mating :

0.100 (2.54mm)

Rated Current (Signal) :

1A

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

UL Flammability Code :

94V-0

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

Termination :

Solder

Contact Type :

Male Pin

Number Of PCB Rows :

2

Mixed Contacts :

No

Connector Type :

Header

Number of Conductors :

ONE

Reference Standard :

UL

Number of Positions Loaded :

All

Contact Length - Mating :

0.240 6.10mm

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Insulation Color :

Beige

Orientation :

RIGHT ANGLE

Shrouding :

Shrouded - 4 Wall

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

NOT SPECIFIED

Pitch - Mating :

0.100 2.54mm

Length - Termination :

0.114 inch
