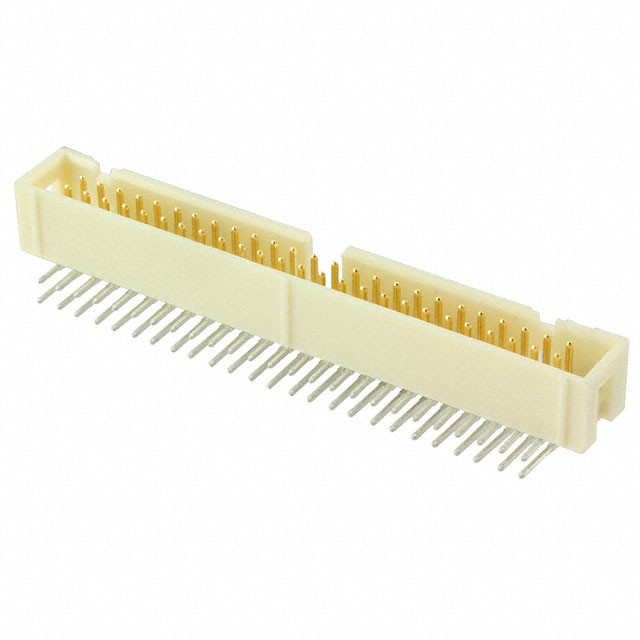

09195506323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Fastening Type :

Latch Holder

Mixed Contacts :

No

UL Flammability Code :

94V-0

Contact Length - Mating :

0.240 6.10mm

Contact Finish - Mating :

NOT SPECIFIED

Number Of PCB Rows :

2

IEC Conformance :

No

Number of Rows :

2

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Termination :

Solder

MIL Conformance :

No

Mount :

Through Hole

Insulation Color :

Beige

Factory Lead Time :

10 Weeks

Insulation Height :

0.366 9.30mm

Number of Positions :

50

Insulation Resistance :

1000000000Ohm

Feature :

Keying Slot

Mounting Type :

Through Hole, Right Angle

Rated Current (Signal) :

1A

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.1 inch

Contact Material :

COPPER ALLOY

Reference Standard :

UL

Color :

Beige, Grey

Body Depth :

0.48 inch

Orientation :

RIGHT ANGLE

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Termination :

0.114 inch

Number of Positions Loaded :

All

Shrouding :

Shrouded - 4 Wall

Packaging :

Bulk

Contact Type :

Male Pin

Polarization Key :

CTR W/GUIDE SLOTS

Series :

SEK

Dielectric Withstanding Voltage :

1000VAC V

Number of Conductors :

ONE

Contact Shape :

Square

Style :

Board to Cable/Wire

Contact Length - Post :

0.114 2.90mm

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Filter Feature :

No
