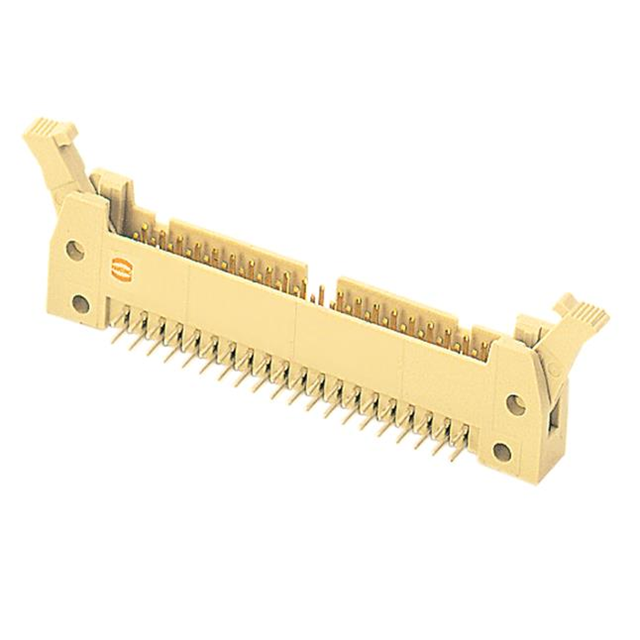

09195406903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Insulation Resistance :

1000000000Ohm

Pitch - Mating :

0.100 2.54mm

DIN Conformance :

yes

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

Number of Positions :

40

Fastening Type :

Latch Lock/Eject Hooks, Long

Contact Length - Post :

0.114 2.90mm

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

IEC Conformance :

yes

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Number of Positions Loaded :

All

Packaging :

Bulk

Number of Rows :

2

Mount :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Option :

GENERAL PURPOSE

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Insulation Height :

0.335 8.51mm

Row Spacing - Mating :

0.100 (2.54mm)

Length - Termination :

0.114 inch

Dielectric Withstanding Voltage :

1000VAC V

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Polarization Key :

CTR W/GUIDE SLOTS

Body Depth :

0.681 inch

UL Flammability Code :

94V-0

MIL Conformance :

No

Mounting Type :

Through Hole, Right Angle

Reference Standard :

UL

Termination :

Solder

Number Of PCB Rows :

2

Factory Lead Time :

7 Weeks

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Rated Current (Signal) :

1A

Number of Conductors :

ONE

Operating Temperature :

-55°C~125°C

Body Breadth :

0.331 inch

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Square

Pbfree Code :

yes

Contact Type :

Male Pin

Filter Feature :

No

Series :

SEK

Mating Contact Pitch :

0.1 inch

Insulation Color :

Beige

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Contact Finish - Mating :

NOT SPECIFIED
