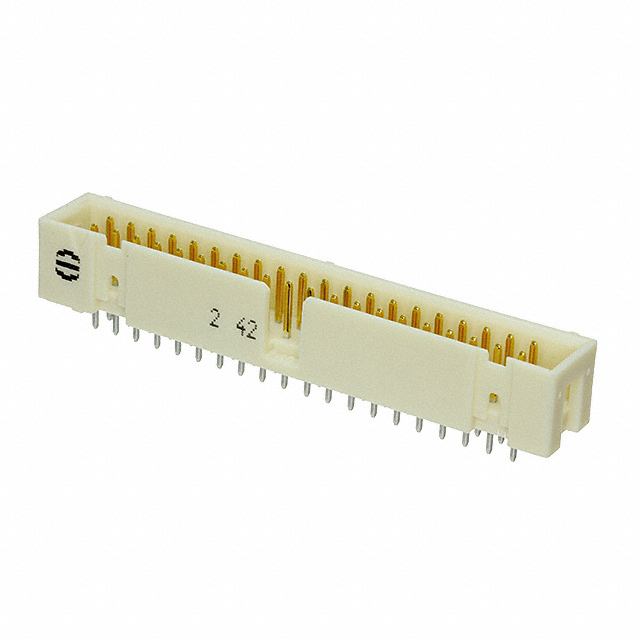

09195406324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pitch - Mating :

0.100 2.54mm

Fastening Type :

Latch Holder

PCB Contact Pattern :

RECTANGULAR

Contact Type :

Male Pin

Insulation Resistance :

1000000000Ohm

Contact Material :

COPPER ALLOY

Contact Finish - Post :

Tin

Style :

Board to Cable/Wire

Mounting Type :

Through Hole

REACH SVHC :

No SVHC

Contact Finish - Mating :

NOT SPECIFIED

Material Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

2A

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Reliability :

COMMERCIAL

Termination :

Solder

Mount :

Through Hole

Feature :

Keying Slot

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

yes

Additional Feature :

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Number of Positions Loaded :

All

ECCN Code :

EAR99

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Insulation Color :

Beige

Row Spacing - Mating :

0.100 (2.54mm)

Contact Gender :

Male

Current Rating :

2A

UL Flammability Code :

94V-0

Connector Type :

Header

Number of Positions :

40

Insulation Height :

0.350 8.89mm

Filter Feature :

No

Number of Conductors :

ONE

Number Of PCB Rows :

2

MIL Conformance :

No

Series :

SEK

Factory Lead Time :

7 Weeks

Contact Length - Post :

0.114 2.90mm

Contact Length - Mating :

0.240 6.10mm

IEC Conformance :

No

Operating Temperature :

-55°C~125°C

Body Breadth :

0.366 inch

Shrouding :

Shrouded - 4 Wall

Packaging :

Bulk

Contact Shape :

Square

Length :

58.42mm

Depth :

9.2mm
