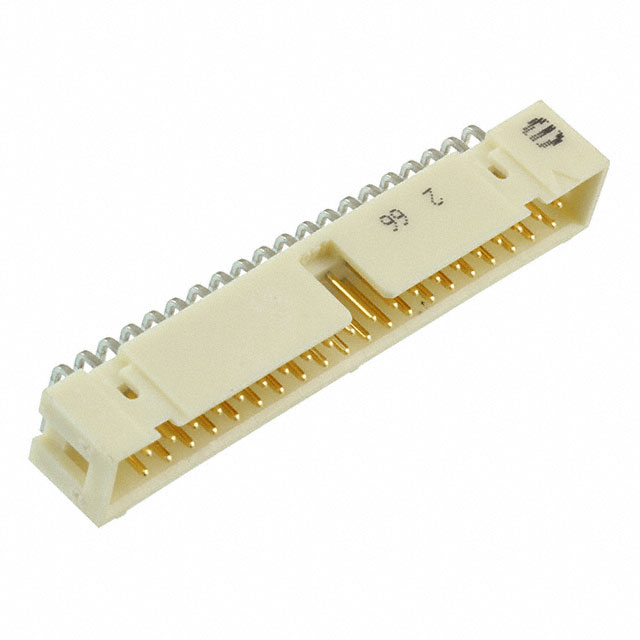

09195406323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Finish - Mating :

NOT SPECIFIED

IEC Conformance :

No

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Contact Shape :

Square

Mixed Contacts :

No

Mounting Type :

Through Hole, Right Angle

Style :

Board to Cable/Wire

Contact Length - Mating :

0.240 6.10mm

Number of Conductors :

ONE

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Color :

Beige

Body Depth :

0.48 inch

UL Flammability Code :

94V-0

Termination :

Solder

Reference Standard :

UL

Contact Type :

Male Pin

DIN Conformance :

yes

Contact Material :

COPPER ALLOY

PCB Contact Pattern :

RECTANGULAR

Insulation Height :

0.366 9.30mm

Filter Feature :

No

Option :

GENERAL PURPOSE

Connector Type :

Header

Number Of PCB Rows :

2

Operating Temperature :

-55°C~125°C

Factory Lead Time :

10 Weeks

RoHS Status :

ROHS3 Compliant

Feature :

Keying Slot

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Pitch - Mating :

0.100 2.54mm

Dielectric Withstanding Voltage :

1000VAC V

Series :

SEK

Packaging :

Bulk

Contact Length - Post :

0.114 2.90mm

Number of Positions :

40

Insulation Resistance :

1000000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Additional Feature :

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Polarization Key :

CTR W/GUIDE SLOTS

Length - Termination :

0.114 inch

Fastening Type :

Latch Holder

Shrouding :

Shrouded - 4 Wall

Pbfree Code :

yes

Orientation :

Straight

Number of Rows :

2

Mount :

Through Hole

Rated Current (Signal) :

1A
