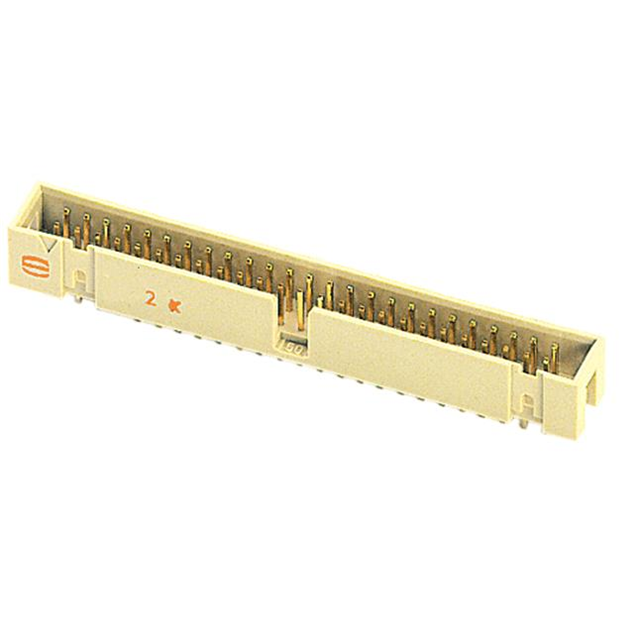

09195347324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Filter Feature :

No

Series :

SEK

Feature :

Keying Slot

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Contact Length - Post :

0.114 2.90mm

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Number of Positions :

34

Polarization Key :

POLARIZED HOUSING

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Insulation Height :

0.350 8.89mm

Orientation :

Straight

Insulation Resistance :

1000000000Ohm

Mount :

Through Hole

Pitch - Mating :

0.100 2.54mm

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

2A

MIL Conformance :

No

UL Flammability Code :

94V-0

Insulation Color :

Beige

Number Of PCB Rows :

2

Option :

GENERAL PURPOSE

Durability :

50 Cycles

Mixed Contacts :

No

Connector Type :

Header

Body Breadth :

0.366 inch

Termination :

Solder

Mating Contact Pitch :

0.1 inch

Depth :

9.2mm

Fastening Type :

Latch Holder

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin

Contact Finish - Mating :

NOT SPECIFIED

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

7 Weeks

IEC Conformance :

yes

Number of Positions Loaded :

All

Mounting Type :

Through Hole

Length :

50.8mm

Style :

Board to Cable/Wire

Row Spacing - Mating :

0.100 (2.54mm)

Number of Rows :

2

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Contact Shape :

Square

Reliability :

COMMERCIAL

Contact Length - Mating :

0.240 6.10mm

Contact Material :

COPPER ALLOY
