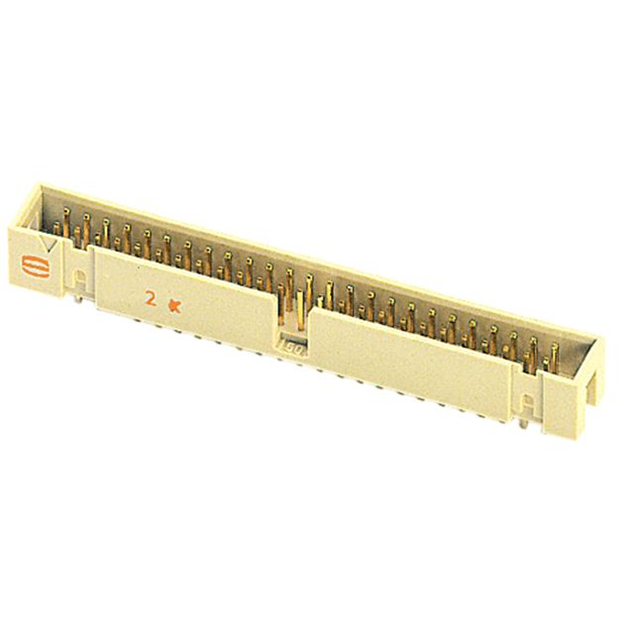

09195267324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Pitch - Mating :

0.100 2.54mm

Number of Positions Loaded :

All

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Number of Rows :

2

Mount :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Body Breadth :

0.366 inch

Style :

Board to Cable/Wire

Length - Termination :

0.114 inch

Fastening Type :

Latch Holder

Shrouding :

Shrouded - 4 Wall

Number of Positions :

26

Pbfree Code :

yes

Number Of PCB Rows :

2

Packaging :

Bulk

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Series :

SEK

Number of Conductors :

ONE

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Contact Shape :

Square

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

yes

Contact Finish - Post :

Tin

Operating Temperature :

-55°C~125°C

IEC Conformance :

yes

Insulation Color :

Beige

Insulation Height :

0.350 8.89mm

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Feature :

Keying Slot

Insulation Resistance :

1000000000Ohm

Rated Current (Signal) :

2A

Mating Contact Pitch :

0.1 inch

HTS Code :

8536.69.40.40

Termination :

Solder

Durability :

50 Cycles

Contact Length - Post :

0.114 2.90mm

Filter Feature :

No

Factory Lead Time :

7 Weeks

UL Flammability Code :

94V-0

Contact Type :

Male Pin

Contact Finish - Mating :

NOT SPECIFIED

Contact Material :

COPPER ALLOY

Connector Type :

Header

Row Spacing - Mating :

0.100 (2.54mm)
