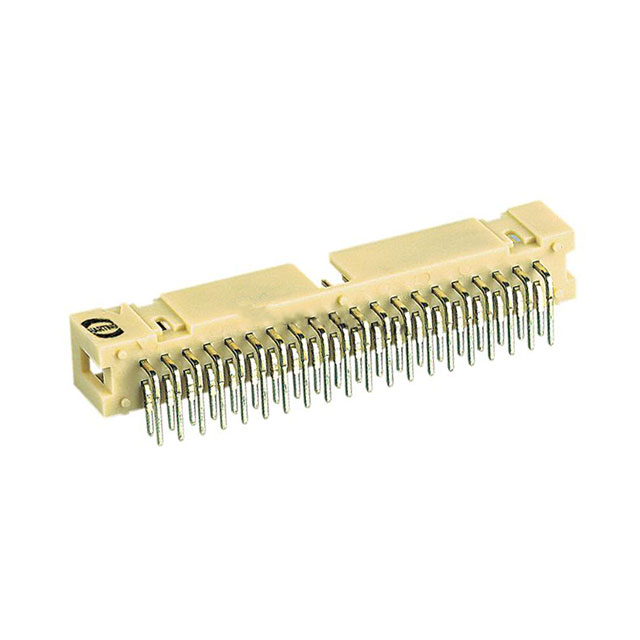

09195267323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Length - Termination :

0.114 inch

Flammability Rating :

UL94 V-0

Insulation Color :

Beige

Durability :

50 Cycles

Filter Feature :

No

Working Voltage :

350V

Number of Positions Loaded :

All

Lead Pitch :

2.54mm

Number of Poles :

26

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Contact Plating :

Gold

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

yes

Current Rating :

1A

REACH SVHC :

No SVHC

Row Spacing - Mating :

0.100 (2.54mm)

Body Depth :

0.48 inch

Contact Finish - Mating :

NOT SPECIFIED

Operating Temperature :

-55°C~125°C

Insulation Height :

0.366 9.30mm

Gender :

Male

UL Flammability Code :

94V-0

Mounting Type :

Through Hole, Right Angle

ECCN Code :

EAR99

Hole Diameter :

900 μm

Contact Type :

Male Pin

Mating Contact Pitch :

0.1 inch

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Mixed Contacts :

No

Pbfree Code :

yes

Dielectric Withstanding Voltage :

1000VAC V

Number Of PCB Rows :

2

Voltage - Rated DC :

350V

Insulation Resistance :

1GOhm

Reference Standard :

UL

Color :

Grey

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Option :

GENERAL PURPOSE

Contact Length - Post :

0.114 2.90mm

HTS Code :

8536.69.40.40

Mount :

Through Hole

Feature :

Keying Slot

IEC Conformance :

No

Contact Shape :

Square

Style :

Board to Cable/Wire

Shrouding :

Shrouded - 4 Wall

Contact Length - Mating :

0.240 6.10mm

Contact Resistance :

20mOhm

Pitch - Mating :

0.100 2.54mm

Series :

SEK

Voltage - Rated AC :

350V

Rated Current (Signal) :

1A

Factory Lead Time :

10 Weeks

Polarization Key :

CTR W/GUIDE SLOTS

Reliability :

COMMERCIAL

Connector Type :

Header

Fastening Type :

Latch Holder

Number of Rows :

2

Body Length or Diameter :

1.598 inch

Packaging :

Bulk
