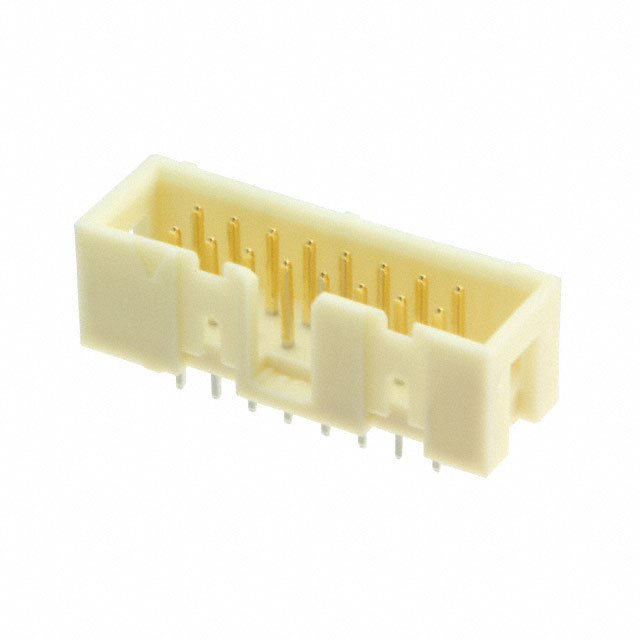

09195167324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Rated Current (Signal) :

2A

Lead Pitch :

2.54mm

Body Breadth :

0.366 inch

Polarization Key :

POLARIZED HOUSING

Contact Length - Post :

0.114 2.90mm

Contact Material :

COPPER ALLOY

REACH SVHC :

No SVHC

Contact Finish - Post :

Tin

HTS Code :

8536.69.40.40

Row Spacing - Mating :

0.100 (2.54mm)

Packaging :

Bulk

Contact Finish - Mating :

NOT SPECIFIED

PCB Contact Pattern :

RECTANGULAR

Gender :

Male

DIN Conformance :

yes

Option :

GENERAL PURPOSE

IEC Conformance :

yes

MIL Conformance :

No

Filter Feature :

No

Termination :

Solder

Number of Conductors :

ONE

Contact Length - Mating :

0.240 6.10mm

Number of Positions Loaded :

All

Mixed Contacts :

No

Insulation Height :

0.350 8.89mm

Operating Temperature :

-55°C~125°C

Number of Rows :

2

Hole Diameter :

900 μm

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.100 2.54mm

Contact Resistance :

20mOhm

Style :

Board to Cable/Wire

Fastening Type :

Latch Holder

Factory Lead Time :

7 Weeks

Series :

SEK

Current Rating :

2A

Contact Shape :

Square

Contact Plating :

Gold

UL Flammability Code :

94V-0

Voltage - Rated DC :

350V

Connector Type :

Header

Color :

Grey

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Length - Tail :

2.9mm

Shrouding :

Shrouded - 4 Wall

Mount :

Through Hole

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Number of Poles :

16

Working Voltage :

350V

Insulation Resistance :

1GOhm

Number Of PCB Rows :

2

Contact Type :

Male Pin

Flammability Rating :

UL94 V-0

Insulation Color :

Beige

Durability :

50 Cycles

Feature :

Keying Slot

Voltage - Rated AC :

350V
