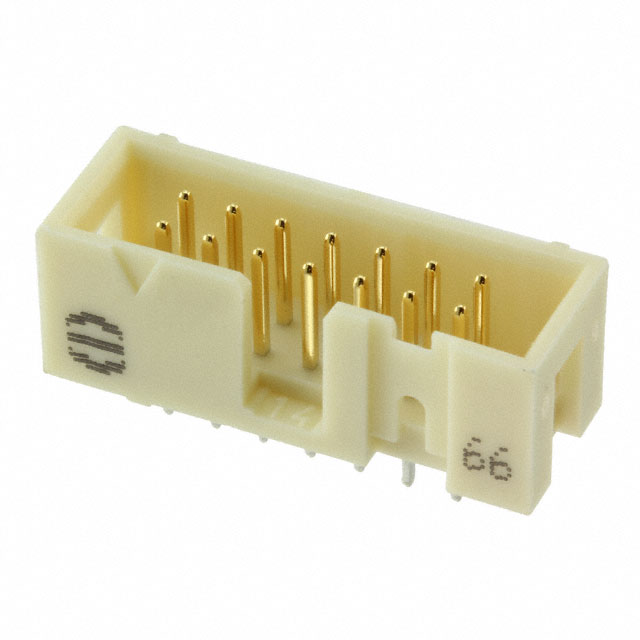

09195147324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Durability :

50 Cycles

Series :

SEK

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Body Breadth :

0.366 inch

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1GOhm

Mounting Type :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Voltage - Rated AC :

350V

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

7 Weeks

Reliability :

COMMERCIAL

REACH SVHC :

No SVHC

Length - Tail :

2.9mm

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Insulation Color :

Beige

Mating Contact Pitch :

0.1 inch

Style :

Board to Cable/Wire

Hole Diameter :

900 μm

Color :

Grey

Orientation :

Straight

DIN Conformance :

yes

Shrouding :

Shrouded - 4 Wall

Number of Positions Loaded :

All

MIL Conformance :

No

IEC Conformance :

No

Length :

25.4mm

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Contact Length - Post :

0.114 2.90mm

Fastening Type :

Latch Holder

PCB Contact Pattern :

RECTANGULAR

Rated Current (Signal) :

2A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.350 8.89mm

Contact Resistance :

20mOhm

Polarization Key :

POLARIZED HOUSING

Current Rating :

2A

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Depth :

9.2mm

Voltage - Rated DC :

350V

Number Of PCB Rows :

2

Termination :

Solder

Filter Feature :

No

Mixed Contacts :

No

Number of Poles :

14

Contact Material :

COPPER ALLOY

Lead Pitch :

2.54mm

Working Voltage :

350V

Pitch - Mating :

0.100 2.54mm

UL Flammability Code :

94V-0

ECCN Code :

EAR99

Contact Type :

Male Pin

Contact Plating :

Gold

Contact Finish - Mating :

NOT SPECIFIED

Mount :

Through Hole

Connector Type :

Header

Number of Rows :

2

HTS Code :

8536.69.40.40

Contact Finish - Post :

Tin

Feature :

Keying Slot

Contact Shape :

Square

Row Spacing - Mating :

0.100 (2.54mm)
