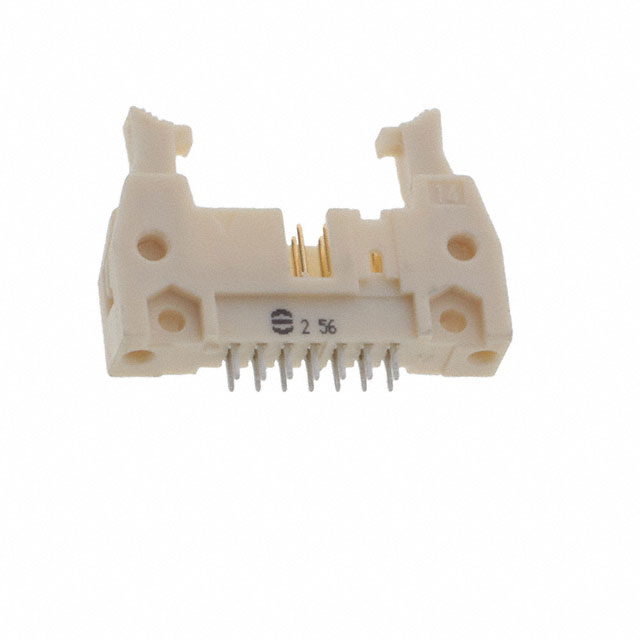

09195146904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.1 inch

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

DIN Conformance :

yes

Filter Feature :

No

Contact Finish - Mating :

NOT SPECIFIED

Row Spacing - Mating :

0.100 (2.54mm)

Fastening Type :

Latch Lock/Eject Hooks, Long

Insulation Color :

Beige

RoHS Status :

ROHS3 Compliant

Contact Length - Post :

0.114 2.90mm

Insulation Height :

0.681 17.30mm

Factory Lead Time :

7 Weeks

Feature :

Keying Slot, Mounting Flange

Contact Type :

Male Pin

Mixed Contacts :

No

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Number of Positions Loaded :

All

Contact Material :

COPPER ALLOY

Contact Shape :

Square

Reference Standard :

UL

IEC Conformance :

yes

Rated Current (Signal) :

1A

Connector Type :

Header

UL Flammability Code :

94V-0

Style :

Board to Cable/Wire

Number of Rows :

2

Mount :

Through Hole

Body Depth :

0.681 inch

Polarization Key :

CTR W/GUIDE SLOTS

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Number Of PCB Rows :

2

Termination :

Solder

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole

Contact Length - Mating :

0.228 5.80mm

Series :

SEK

Dielectric Withstanding Voltage :

1000VAC V

Number of Positions :

14

Insulation Resistance :

1000000000Ohm

Body Breadth :

0.331 inch

Packaging :

Bulk

Body Length or Diameter :

1.984 inch

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin

Pbfree Code :

yes

Overall Contact Length :

0.650 16.51mm

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13
