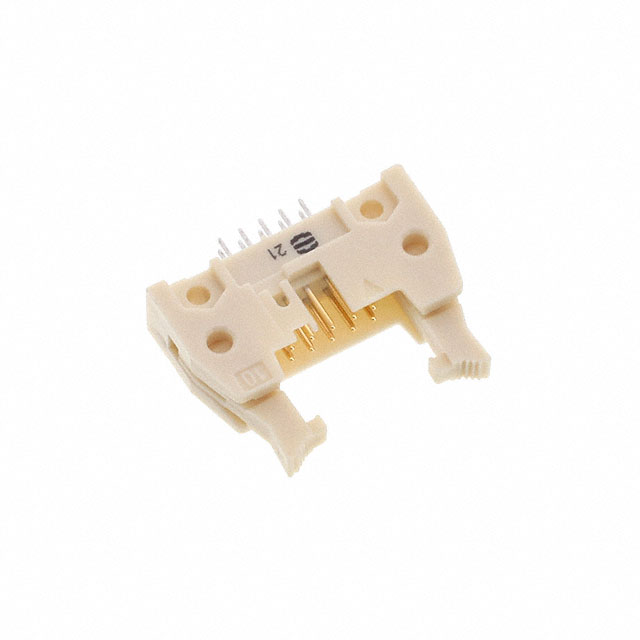

09195107904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Body Length or Diameter :

1.787 inch

Contact Finish - Post :

Tin

Operating Temperature :

-55°C~125°C

Style :

Board to Cable/Wire

Contact Length - Mating :

0.228 5.80mm

Number of Rows :

2

Current Rating :

2A

Rated Current (Signal) :

1A

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Fastening Type :

Latch Lock/Eject Hooks, Long

Insulation Height :

0.681 17.30mm

Polarization Key :

CTR W/GUIDE SLOTS

Row Spacing - Mating :

0.100 (2.54mm)

HTS Code :

8536.69.40.40

Durability :

50 Cycles

IEC Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Body Breadth :

0.331 inch

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.100 2.54mm

Length - Termination :

0.114 inch

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Filter Feature :

No

Contact Length - Post :

0.114 2.90mm

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Overall Contact Length :

0.650 16.51mm

Number of Positions :

10

Insulation Color :

Beige

Contact Gender :

Male

Reference Standard :

UL

Contact Type :

Male Pin

Mount :

Through Hole

Shrouding :

Shrouded - 4 Wall

Number of Conductors :

ONE

Pbfree Code :

yes

DIN Conformance :

yes

Body Depth :

0.681 inch

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Reliability :

COMMERCIAL

Factory Lead Time :

7 Weeks

Termination :

Solder

MIL Conformance :

No

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Square

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

UL Flammability Code :

94V-0

Connector Type :

Header

Number of Positions Loaded :

All

Series :

SEK
