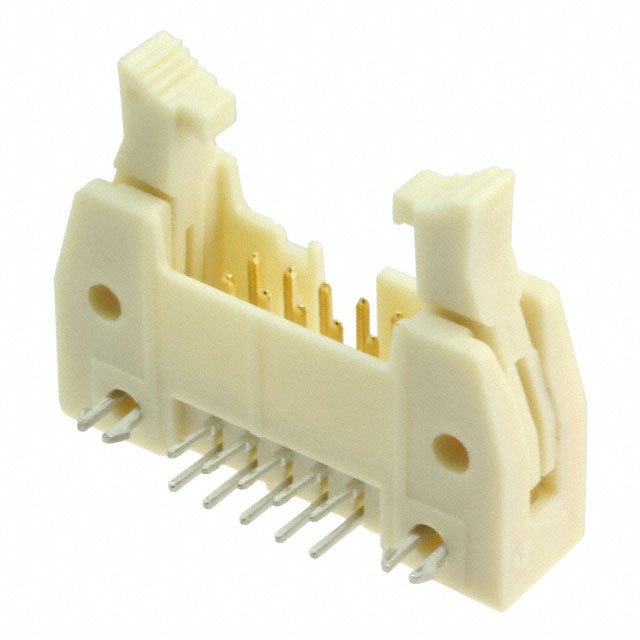

09195106953
Or copy the link below:
- Mfr.Part #
- 09195106953
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 46,418
- In Stock ：
- 46,418
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Max Current Rating :
- 2A
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Contact Length - Mating :
- 0.240 6.10mm
- Number of Positions :
- 10
- UL Flammability Code :
- 94V-0
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- yes
- ECCN Code :
- EAR99
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.114 2.90mm
- Number of Rows :
- 2
- Insulation Color :
- Beige
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Header
- Series :
- SEK
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- Depth :
- 25.75mm
- Insulation Height :
- 0.335 8.51mm
- Length :
- 32.3mm
- Operating Temperature :
- -55°C~125°C
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Lock, Keying Slot
- IEC Conformance :
- yes
- Style :
- Board to Cable/Wire
- Additional Feature :
- STANDARD: IEC 60603-13; DIN EN 60603-13
- Datasheets
- 09195106953
09195106953 Documents
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 10-Position Board to Cable/Wire 0.335 8.51mm Height
09195106953 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the SEK Series.Furthermore, there are other features such as STANDARD: IEC 60603-13; DIN EN 60603-13, to name a few.In many ways, Board Lock, Keying Slot makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
09195106953 Features
SEK series
09195106953 Applications
There are a lot of HARTING
09195106953 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
