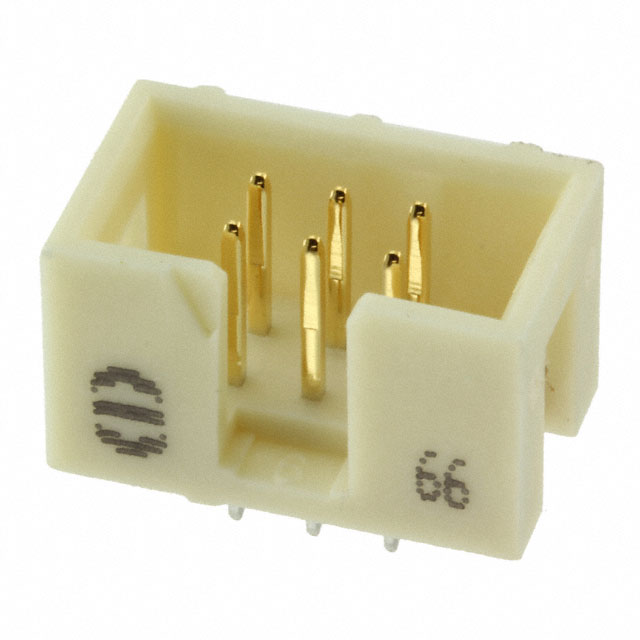

09195066324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Rated Current (Signal) :

2A

Connector Type :

Header

Polarization Key :

POLARIZED HOUSING

Contact Length - Post :

0.114 2.90mm

Fastening Type :

Latch Holder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Mating :

0.240 6.10mm

Insulation Color :

Beige

MIL Conformance :

No

Contact Finish - Post :

Tin

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole

Shrouding :

Shrouded - 4 Wall

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Mount :

Through Hole

UL Flammability Code :

94V-0

Row Spacing - Mating :

0.100 (2.54mm)

Pitch - Mating :

0.100 2.54mm

PCB Contact Pattern :

RECTANGULAR

Length - Termination :

0.114 inch

Factory Lead Time :

7 Weeks

DIN Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Mixed Contacts :

No

Insulation Resistance :

1000000000Ohm

Filter Feature :

No

Number Of PCB Rows :

2

Packaging :

Bulk

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Number of Positions :

6

Feature :

Keying Slot

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Series :

SEK

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Number of Conductors :

ONE

Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Insulation Height :

0.350 8.89mm

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Contact Material :

COPPER ALLOY
