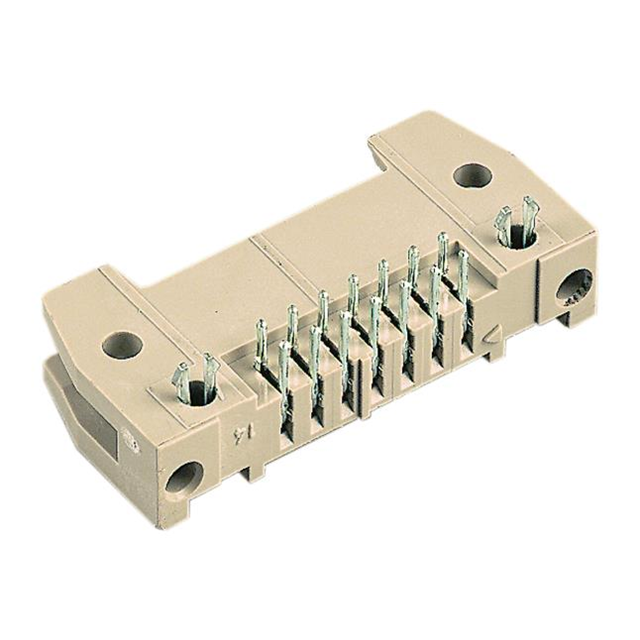

09185647973

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Body Breadth :

0.335 inch

Reference Standard :

UL

Mixed Contacts :

No

MIL Conformance :

No

Body/Shell Style :

Receptacle

HTS Code :

8536.69.40.40

Termination Type :

Solder

Number Of PCB Rows :

2

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

DIN Conformance :

yes

Reliability :

COMMERCIAL

Terminal Pitch :

2.54mm

Board Mounting Option :

SPLIT BOARD LOCK

Operating Temperature (Max) :

125°C

Mounting Option 1 :

LOCKING

Mounting Style :

RIGHT ANGLE

PCB Contact Pattern :

RECTANGULAR

Contact Finish Termination :

TIN OVER NICKEL

Body Length or Diameter :

3.972 inch

Contact Resistance :

20mOhm

Mating Contact Row Spacing :

0.1 inch

Body Depth :

0.681 inch

Length - Termination :

0.114 inch

IEC Conformance :

yes

Contact Pattern :

RECTANGULAR

Mounting Type :

BOARD

JESD-609 Code :

e3

Contact Style :

SQ PIN-SKT

Total Number of Contacts :

64

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

UL Flammability Code :

94V-0

Filter Feature :

No

Option :

GENERAL PURPOSE

PCB Contact Row Spacing :

2.54 mm

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Operating Temperature (Min) :

-55°C

Number of Conductors :

ONE

Number of Rows :

2

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Connector Type :

BOARD EURO CONNECTOR

Mating Contact Pitch :

0.1 inch

Rated Current (Signal) :

1A
