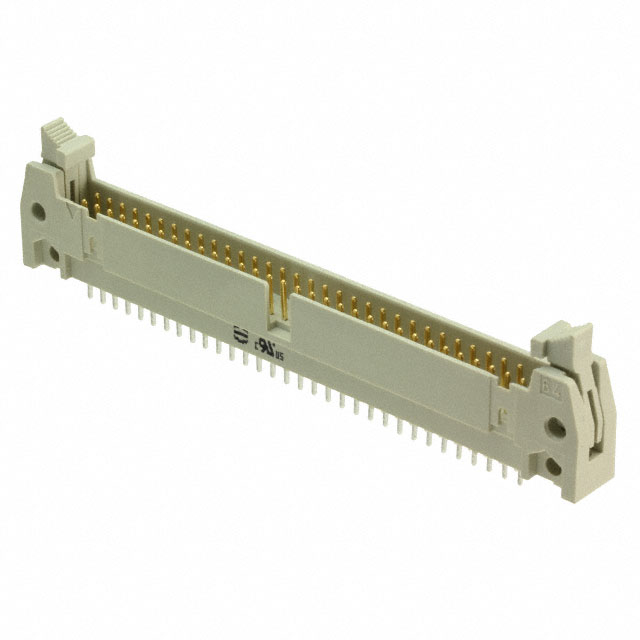

09185647914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Material :

COPPER ALLOY

Mixed Contacts :

No

Pitch - Mating :

0.100 2.54mm

Mating Contact Pitch :

0.1 inch

Working Voltage :

350V

Option :

GENERAL PURPOSE

Voltage - Rated AC :

350V

Series :

SEK

ECCN Code :

EAR99

Packaging :

Tray

Termination :

Solder

Color :

Grey

Number Of PCB Rows :

2

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Current Rating :

2A

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Body Depth :

0.681 inch

Contact Type :

Male Pin

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

DIN Conformance :

yes

REACH SVHC :

No SVHC

Length - Termination :

0.114 inch

Contact Resistance :

20mOhm

Overall Contact Length :

0.650 16.51mm

Reference Standard :

UL

Insulation Color :

Gray

Contact Plating :

Gold

Contact Finish - Post :

Tin

Contact Length - Post :

0.114 2.90mm

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

Number of Rows :

2

Connector Type :

Header

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Style :

Board to Cable/Wire

Voltage - Rated DC :

350V

IEC Conformance :

yes

Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Insulation Height :

0.681 17.30mm

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1GOhm

Contact Length - Mating :

0.228 5.80mm

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Feature :

Keying Slot, Mounting Flange

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Lead Pitch :

2.54mm

Rated Current (Signal) :

2A

Durability :

50 Cycles

Mounting Type :

Through Hole

Row Spacing - Mating :

0.100 (2.54mm)

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock/Eject Hooks, Short

Factory Lead Time :

7 Weeks

Number of Conductors :

ONE

Body Breadth :

0.335 inch

Mount :

Through Hole

Number of Poles :

64
