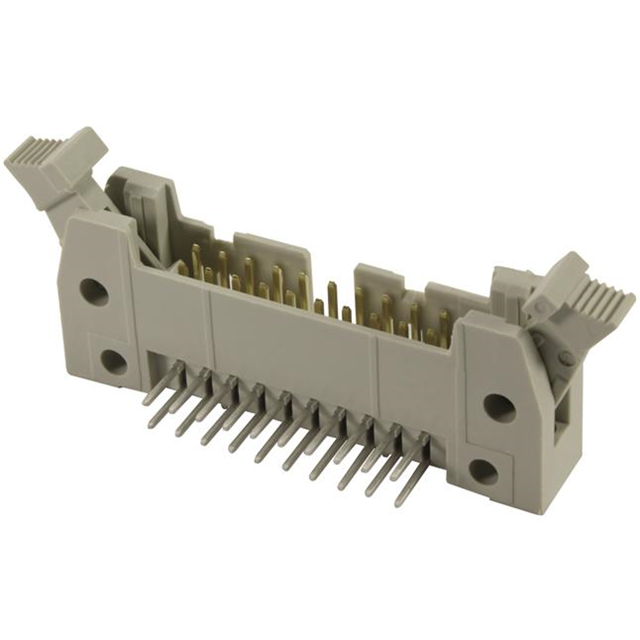

09185647913

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

UL Flammability Code :

94V-0

Contact Length - Post :

0.114 2.90mm

Factory Lead Time :

7 Weeks

Voltage - Rated DC :

350V

Insulation Resistance :

1GOhm

Option :

GENERAL PURPOSE

Length :

100.88mm

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

2

Pbfree Code :

yes

Contact Gender :

Male

Body Breadth :

0.331 inch

Connector Type :

Header

Durability :

50 Cycles

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

NOT SPECIFIED

Contact Length - Mating :

0.240 6.10mm

Rated Current (Signal) :

1A

Row Spacing - Mating :

0.100 (2.54mm)

Depth :

23.3mm

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

1000VAC V

Polarization Key :

CTR W/GUIDE SLOTS

DIN Conformance :

yes

Filter Feature :

No

Voltage - Rated AC :

350V

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Series :

SEK

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Contact Resistance :

20mOhm

Current Rating :

2A

Contact Material :

COPPER ALLOY

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Working Voltage :

350V

Hole Diameter :

900 μm

Style :

Board to Cable/Wire

Mount :

Through Hole

Reference Standard :

UL

Feature :

Keying Slot, Mounting Flange

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Fastening Type :

Latch Lock/Eject Hooks, Short

Termination :

Solder

Mating Contact Pitch :

0.1 inch

Number of Rows :

2

Packaging :

Bulk

Contact Plating :

Gold

Number of Conductors :

ONE

IEC Conformance :

yes

Contact Shape :

Square

Number of Poles :

64

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Color :

Grey

Orientation :

RIGHT ANGLE

Insulation Color :

Gray

Insulation Height :

0.335 8.51mm

Contact Type :

Male Pin
