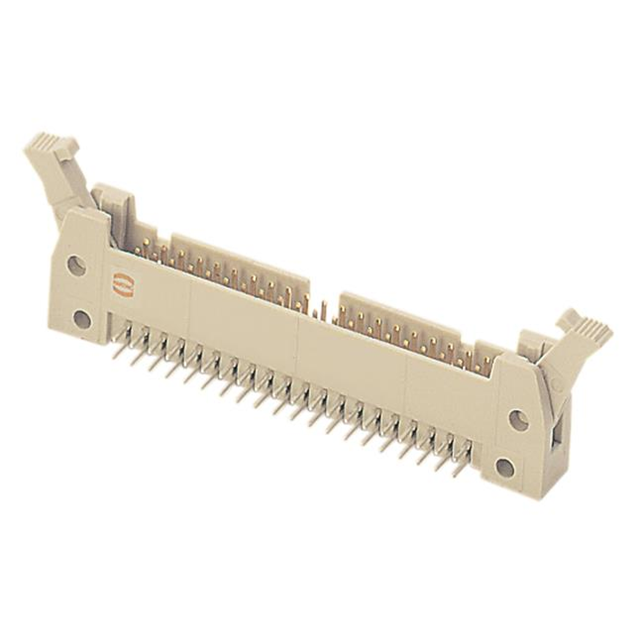

09185647901

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Material :

COPPER ALLOY

Operating Temperature :

-55°C~125°C

Insulation Height :

0.335 8.51mm

Reference Standard :

UL

Color :

Grey

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.100 2.54mm

ECCN Code :

EAR99

Mount :

Through Hole

Body Length or Diameter :

4.484 inch

Contact Type :

Male Pin

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Series :

SEK

Filter Feature :

No

Body Breadth :

0.331 inch

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Number of Positions Loaded :

All

Number Of PCB Rows :

2

HTS Code :

8536.69.40.40

Contact Shape :

Square

Number of Conductors :

ONE

Rated Current (Signal) :

1A

Fastening Type :

Latch Lock/Eject Hooks, Long

Durability :

50 Cycles

Material Flammability Rating :

UL94 V-0

Number of Positions :

64

Pbfree Code :

yes

Style :

Board to Cable/Wire

Shrouding :

Shrouded - 4 Wall

Contact Length - Mating :

0.240 6.10mm

DIN Conformance :

yes

Termination :

Solder

Body Depth :

0.681 inch

Mounting Type :

Through Hole, Right Angle

Contact Length - Post :

0.177 4.50mm

Factory Lead Time :

7 Weeks

Additional Feature :

PANEL MOUNTABLE

Insulation Color :

Gray

Insulation Resistance :

1000000000Ohm

Dielectric Withstanding Voltage :

1000VAC V

Row Spacing - Mating :

0.100 (2.54mm)

Packaging :

Bulk

MIL Conformance :

No

Reliability :

COMMERCIAL

Connector Type :

Header

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Length - Termination :

0.177 inch

Feature :

Keying Slot, Mounting Flange

UL Flammability Code :

94V-0

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Polarization Key :

CTR W/GUIDE SLOTS

Contact Finish - Mating :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant
