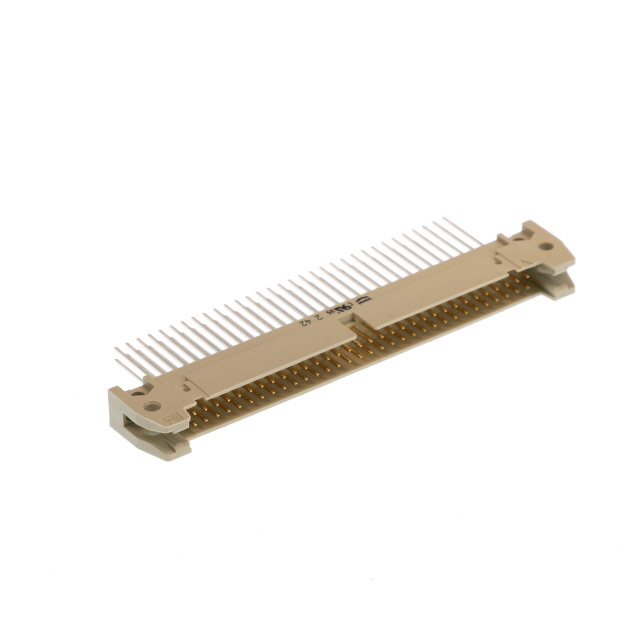

09185646927

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Positions :

64

MIL Conformance :

No

Length - Termination :

0.591 inch

Insulation Height :

0.681 17.30mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Body Breadth :

0.331 inch

Insulation Color :

Gray

Body Length or Diameter :

3.961 inch

Contact Length - Mating :

0.228 5.80mm

Contact Length - Post :

0.591 15.00mm

RoHS Status :

ROHS3 Compliant

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

Color :

Beige

Reliability :

COMMERCIAL

Rated Current (Signal) :

1A

Operating Temperature :

-55°C~125°C

Shrouding :

Shrouded - 4 Wall

Body Depth :

0.681 inch

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Reference Standard :

UL

Contact Type :

Male Pin

Contact Shape :

Square

IEC Conformance :

yes

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Factory Lead Time :

7 Weeks

Style :

Board to Cable/Wire

Number of Rows :

2

Number Of PCB Rows :

2

Pbfree Code :

yes

Termination :

Wire Wrap

Contact Finish - Mating :

NOT SPECIFIED

Mount :

Through Hole

DIN Conformance :

yes

Overall Contact Length :

1.126 28.60mm

Series :

SEK

Contact Material :

COPPER ALLOY

Row Spacing - Mating :

0.100 (2.54mm)

Material Flammability Rating :

UL94 V-0

Feature :

Keying Slot, Mounting Flange

Filter Feature :

No

Dielectric Withstanding Voltage :

1000VAC V

ECCN Code :

EAR99

Pitch - Mating :

0.100 2.54mm

Mixed Contacts :

No

Connector Type :

Header

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Fastening Type :

Push-Pull

Contact Finish - Post :

Tin

Polarization Key :

CTR W/GUIDE SLOTS

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR
