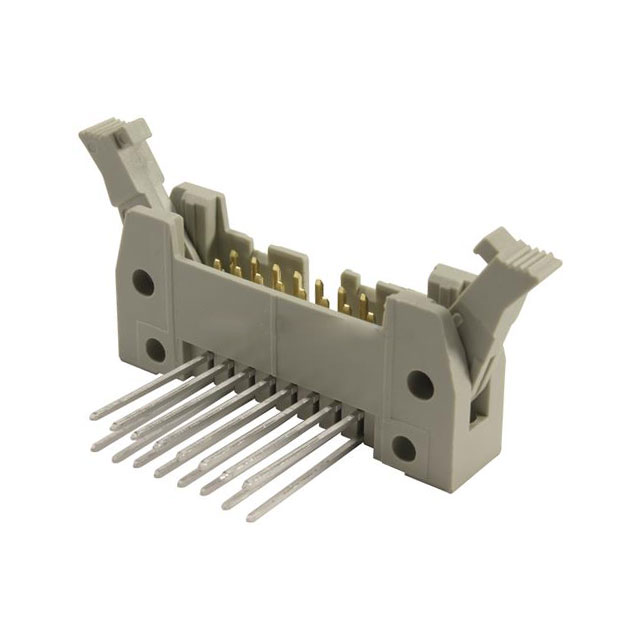

09185646926

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Rated Current (Signal) :

1A

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Contact Material :

COPPER ALLOY

IEC Conformance :

yes

Reference Standard :

UL

Number of Positions Loaded :

All

Mating Contact Pitch :

0.1 inch

Mounting Type :

Through Hole, Right Angle

Color :

Beige

Contact Length - Mating :

0.240 6.10mm

Feature :

Keying Slot, Mounting Flange

Contact Length - Post :

0.591 15.00mm

Insulation Color :

Gray

Pitch - Mating :

0.100 2.54mm

Mixed Contacts :

No

Body Length or Diameter :

3.961 inch

RoHS Status :

ROHS3 Compliant

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.681 inch

Polarization Key :

CTR W/GUIDE SLOTS

HTS Code :

8536.69.40.40

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Filter Feature :

No

Packaging :

Bulk

DIN Conformance :

yes

Row Spacing - Mating :

0.100 (2.54mm)

Contact Type :

Male Pin

Number of Rows :

2

Connector Type :

Header

UL Flammability Code :

94V-0

Series :

SEK

Number of Conductors :

ONE

Contact Shape :

Square

Shrouding :

Shrouded - 4 Wall

Termination :

Wire Wrap

ECCN Code :

EAR99

Number Of PCB Rows :

2

Contact Finish - Mating :

NOT SPECIFIED

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

MIL Conformance :

No

Dielectric Withstanding Voltage :

1000VAC V

Body Breadth :

0.331 inch

Number of Positions :

64

Length - Termination :

0.591 inch

Style :

Board to Cable/Wire

Insulation Height :

0.681 17.30mm

Mount :

Through Hole

Insulation Resistance :

1000000000Ohm
