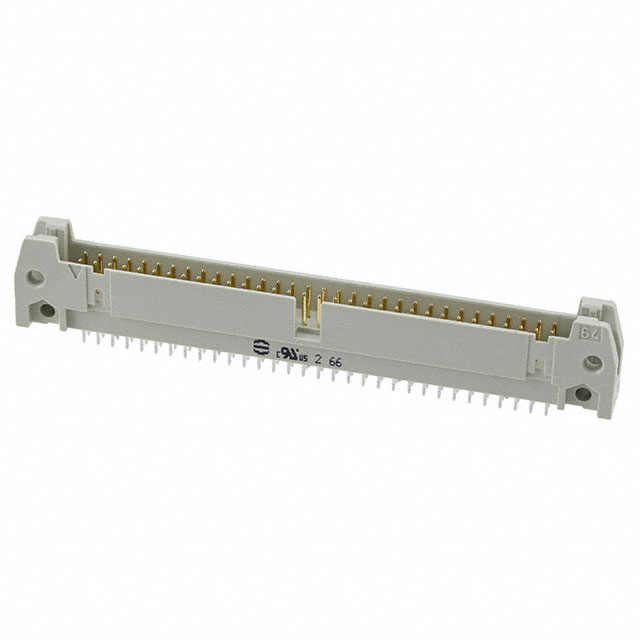

09185646924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Factory Lead Time :

7 Weeks

Contact Length - Post :

0.114 2.90mm

Shrouding :

Shrouded - 4 Wall

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Current Rating :

1A

Material Flammability Rating :

UL94 V-0

Contact Finish - Post :

Tin

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

yes

Pbfree Code :

yes

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Number Of PCB Rows :

2

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.100 2.54mm

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.335 inch

Color :

Grey

Number of Positions Loaded :

All

Orientation :

Straight

Termination :

Solder

Reliability :

COMMERCIAL

Contact Length - Mating :

0.240 6.10mm

Mount :

Through Hole

Feature :

Keying Slot, Mounting Flange

Packaging :

Bulk

Filter Feature :

No

Series :

SEK

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

NOT SPECIFIED

Overall Contact Length :

0.650 16.51mm

Connector Type :

Header

Contact Shape :

Square

Insulation Height :

0.681 17.30mm

Body Depth :

0.681 inch

Gender :

Male

Number of Positions :

64

Polarization Key :

POLARIZED HOUSING

Number of Conductors :

ONE

Housing Material :

Polyester

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Insulation Color :

Gray

Mounting Type :

Through Hole

Reference Standard :

UL

Fastening Type :

Push-Pull

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.100 (2.54mm)

Number of Rows :

2

Rated Current (Signal) :

2A

Length - Termination :

0.114 inch

MIL Conformance :

No

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

DIN Conformance :

yes

Insulation Resistance :

1000000000Ohm
