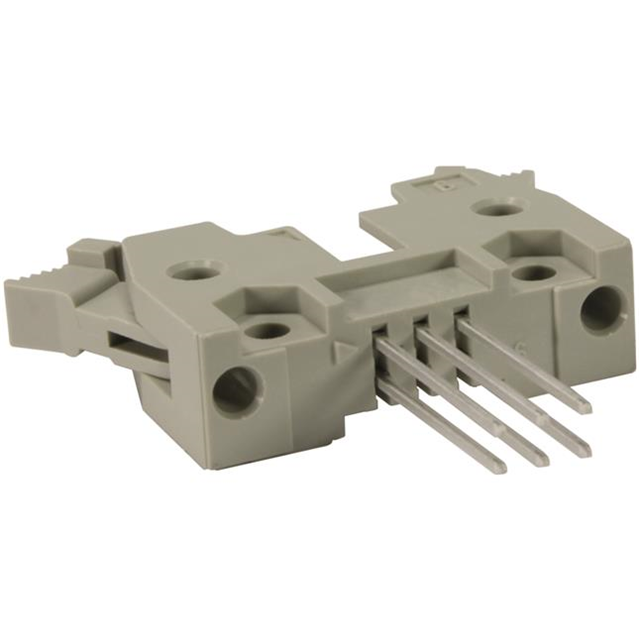

09185646917

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Body Length or Diameter :

4.354 inch

Insulation Color :

Gray

Polarization Key :

CTR W/GUIDE SLOTS

Length - Termination :

0.591 inch

Style :

Board to Cable/Wire

Number of Rows :

2

Feature :

Keying Slot, Mounting Flange

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Body Depth :

0.681 inch

Mounting Type :

Through Hole

Rated Current (Signal) :

1A

Contact Length - Mating :

0.240 6.10mm

UL Flammability Code :

94V-0

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Number of Conductors :

ONE

Mixed Contacts :

No

Connector Type :

Header

Option :

GENERAL PURPOSE

MIL Conformance :

No

Pbfree Code :

yes

Contact Length - Post :

0.591 15.00mm

Mount :

Through Hole

Reliability :

COMMERCIAL

Row Spacing - Mating :

0.100 (2.54mm)

Contact Type :

Male Pin

Packaging :

Bulk

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

Dielectric Withstanding Voltage :

1000VAC V

Contact Finish - Mating :

NOT SPECIFIED

ECCN Code :

EAR99

DIN Conformance :

yes

Number Of PCB Rows :

2

HTS Code :

8536.69.40.40

Termination :

Wire Wrap

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Body Breadth :

0.331 inch

Insulation Resistance :

1000000000Ohm

Insulation Height :

0.681 17.30mm

IEC Conformance :

yes

Reference Standard :

UL

Filter Feature :

No

Mating Contact Pitch :

0.1 inch

Contact Shape :

Square

Factory Lead Time :

6 Weeks

Series :

SEK

Color :

Beige

Fastening Type :

Latch Lock/Eject Hooks, Short

Number of Positions :

64

Number of Positions Loaded :

All

Contact Finish - Post :

Tin

Overall Contact Length :

1.126 28.60mm

Pitch - Mating :

0.100 2.54mm
