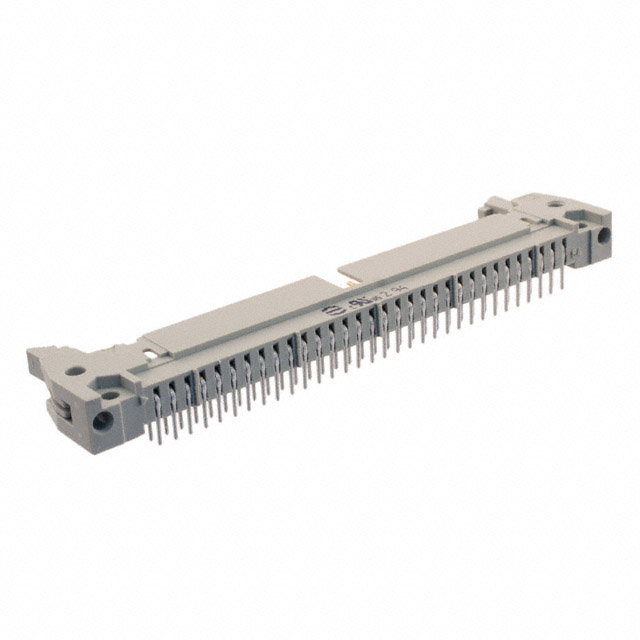

09185646903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Insulation Color :

Gray

HTS Code :

8536.69.40.40

Body Breadth :

0.335 inch

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions :

64

Additional Feature :

PANEL MOUNTABLE

Reference Standard :

UL

Contact Material :

COPPER ALLOY

Length - Termination :

0.114 inch

Insulation Resistance :

1000000000Ohm

Contact Gender :

Male

Rated Current (Signal) :

2A

RoHS Status :

ROHS3 Compliant

Contact Length - Post :

0.114 2.90mm

Number of Rows :

2

Current Rating :

2A

Number of Conductors :

ONE

Insulation Height :

0.335 8.51mm

Contact Type :

Male Pin

Contact Plating :

Gold

Number Of PCB Rows :

2

Pbfree Code :

yes

Number of Positions Loaded :

All

Filter Feature :

No

REACH SVHC :

No SVHC

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

MIL Conformance :

No

Style :

Board to Cable/Wire

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

IEC Conformance :

No

Series :

SEK

DIN Conformance :

yes

UL Flammability Code :

94V-0

Pitch - Mating :

0.100 2.54mm

Shrouding :

Shrouded - 4 Wall

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Contact Finish - Mating :

NOT SPECIFIED

Mounting Type :

Through Hole, Right Angle

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

Mount :

Through Hole

ECCN Code :

EAR99

Contact Length - Mating :

0.240 6.10mm

Fastening Type :

Latch Lock/Eject Hooks, Long

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Orientation :

RIGHT ANGLE

Feature :

Keying Slot, Mounting Flange

Row Spacing - Mating :

0.100 (2.54mm)

Termination :

Solder

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

4 Weeks

Body Depth :

0.681 inch
