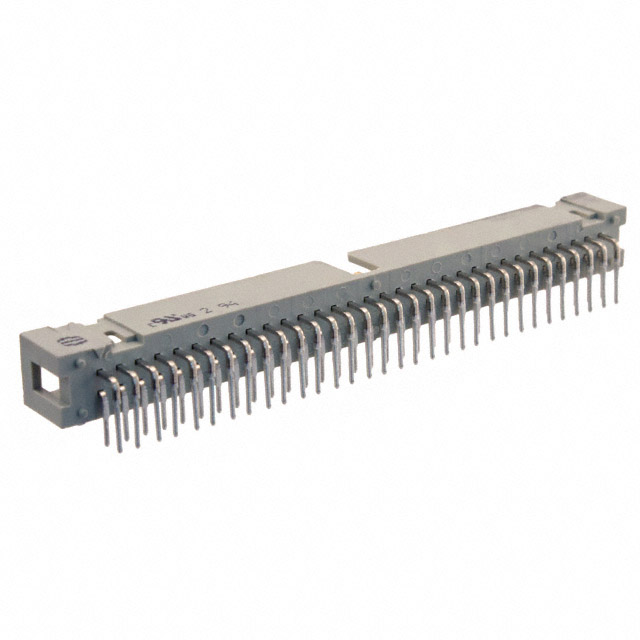

09185646323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Connector Type :

Header

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Polarization Key :

CTR W/GUIDE SLOTS

Number of Positions Loaded :

All

Mounting Type :

Through Hole, Right Angle

Contact Length - Mating :

0.242 6.15mm

Number of Rows :

2

Contact Material :

COPPER ALLOY

Current Rating :

2A

Body Length or Diameter :

3.508 inch

Mating Contact Pitch :

0.1 inch

PCB Contact Pattern :

RECTANGULAR

Housing Material :

Polyester

Style :

Board to Cable/Wire

Number of Conductors :

ONE

Packaging :

Tray

Fastening Type :

Latch Holder

Pbfree Code :

yes

Insulation Height :

0.366 9.30mm

Number Of PCB Rows :

2

Termination :

Solder

Feature :

Keying Slot

Dielectric Withstanding Voltage :

1000VAC V

Mount :

Through Hole

Insulation Resistance :

1000000000Ohm

Mixed Contacts :

No

Contact Plating :

Gold

Insulation Color :

Gray

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Factory Lead Time :

10 Weeks

UL Flammability Code :

94V-0

REACH SVHC :

No SVHC

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions :

64

Contact Length - Post :

0.114 2.90mm

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Contact Finish - Mating :

NOT SPECIFIED

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

IEC Conformance :

yes

Length - Termination :

0.114 inch

Contact Type :

Male Pin

Reference Standard :

UL

Contact Gender :

Male

Filter Feature :

No

DIN Conformance :

yes

Package / Case :

SMC

Series :

SEK

Body Depth :

0.48 inch

Rated Current (Signal) :

1A

Contact Shape :

Square
