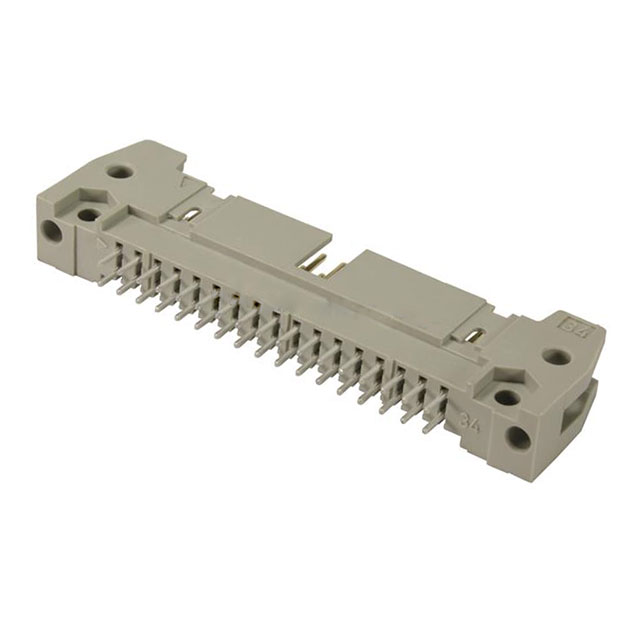

09185645922

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.100 (2.54mm)

Fastening Type :

Push-Pull

Body Breadth :

0.335 inch

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Number of Positions :

64

Length - Termination :

0.177 inch

UL Flammability Code :

94V-0

Contact Finish - Post :

Tin

Color :

Grey

Rated Current (Signal) :

2A

Number of Rows :

2

Option :

GENERAL PURPOSE

Connector Type :

Header

Number Of PCB Rows :

2

Pitch - Mating :

0.100 2.54mm

Series :

SEK

DIN Conformance :

yes

MIL Conformance :

No

Contact Length - Mating :

0.240 6.10mm

Operating Temperature :

-55°C~125°C

Body Depth :

0.681 inch

Mount :

Through Hole

Reference Standard :

UL

Filter Feature :

No

Number of Positions Loaded :

All

Feature :

Keying Slot, Mounting Flange

Contact Type :

Male Pin

Insulation Color :

Gray

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Contact Length - Post :

0.177 4.50mm

Factory Lead Time :

7 Weeks

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Mixed Contacts :

No

IEC Conformance :

yes

Insulation Height :

0.681 17.30mm

Style :

Board to Cable/Wire

Mounting Type :

Through Hole

Overall Contact Length :

0.713 18.10mm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Shape :

Square

Contact Material :

COPPER ALLOY

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING
