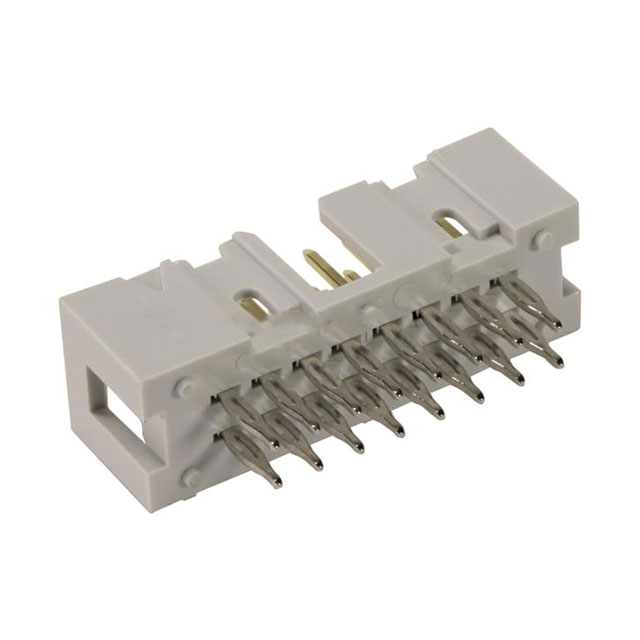

09185645329

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Feature :

Keying Slot

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Termination :

Press-Fit, Solder

Body Length or Diameter :

3.516 inch

Fastening Type :

Push-Pull

PCB Contact Pattern :

RECTANGULAR

Series :

SEK

Insulation Height :

0.350 8.89mm

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.217 5.51mm

Contact Length - Mating :

0.240 6.10mm

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Operating Temperature (Max) :

105°C

Contact Material :

COPPER ALLOY

Body Breadth :

0.366 inch

Contact Shape :

Square

Number of Conductors :

ONE

Number Of PCB Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Pitch - Mating :

0.100 2.54mm

Material Flammability Rating :

UL94 V-0

Operating Temperature (Min) :

-55°C

Contact Type :

Male Pin

Contact Finish - Mating :

Gold

Contact Finish - Post :

Tin

Additional Feature :

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Option :

GENERAL PURPOSE

IEC Conformance :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Polarization Key :

POLARIZED HOUSING

Color :

Grey

Insulation Resistance :

1000000000Ohm

Mount :

Through Hole

Factory Lead Time :

7 Weeks

DIN Conformance :

yes

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole

Insulation Color :

Gray

Rated Current (Signal) :

2A

UL Flammability Code :

94V-0

Number of Positions :

64

Mixed Contacts :

No

Plating Thickness :

30μin

Pbfree Code :

yes

MIL Conformance :

No

Filter Feature :

No
