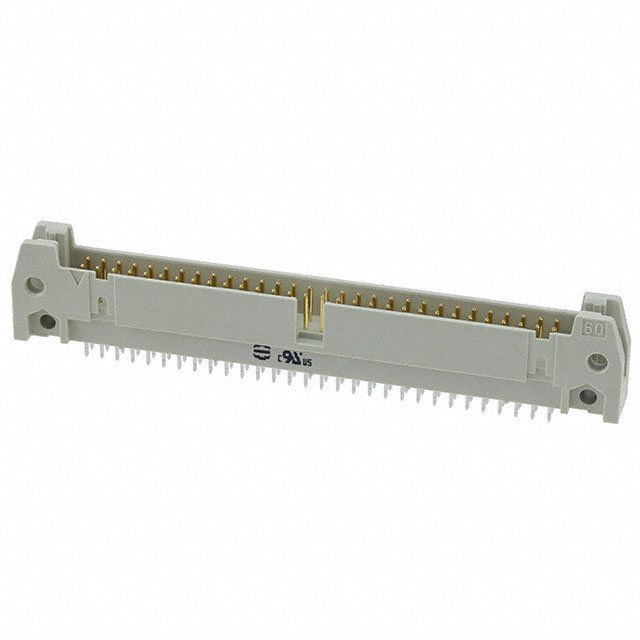

09185606924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Finish - Mating :

NOT SPECIFIED

Mixed Contacts :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Fastening Type :

Push-Pull

Current Rating :

1A

Number of Positions Loaded :

All

Factory Lead Time :

7 Weeks

UL Flammability Code :

94V-0

Length - Termination :

0.114 inch

IEC Conformance :

yes

Overall Contact Length :

0.650 16.51mm

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Contact Type :

Male Pin

Feature :

Keying Slot, Mounting Flange

Contact Length - Mating :

0.240 6.10mm

Packaging :

Bulk

Housing Material :

Polyester

Style :

Board to Cable/Wire

Contact Finish - Post :

Tin

Number of Conductors :

ONE

Body Breadth :

0.335 inch

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Height :

0.681 17.30mm

Option :

GENERAL PURPOSE

Filter Feature :

No

Termination :

Solder

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000Ohm

Reference Standard :

UL

Contact Shape :

Square

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Male

Contact Material :

COPPER ALLOY

Mating Contact Pitch :

0.1 inch

Number Of PCB Rows :

2

Number of Positions :

60

Series :

SEK

Pitch - Mating :

0.100 2.54mm

Pbfree Code :

yes

Rated Current (Signal) :

2A

Color :

Grey

Insulation Color :

Gray

Number of Rows :

2

MIL Conformance :

No

Body Depth :

0.681 inch

Operating Temperature :

-55°C~125°C

Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole

DIN Conformance :

yes

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.114 2.90mm
