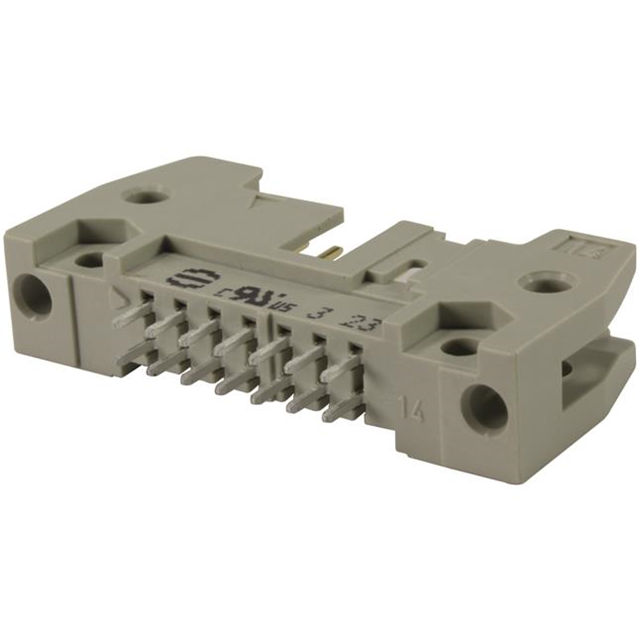

09185606902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mixed Contacts :

No

Contact Finish - Mating :

NOT SPECIFIED

Insulation Resistance :

1000000000Ohm

Polarization Key :

CTR W/GUIDE SLOTS

Number of Positions :

60

Body Depth :

0.681 inch

Contact Length - Mating :

0.240 6.10mm

Mating Contact Pitch :

0.1 inch

Termination :

Solder

Number Of PCB Rows :

2

Number of Rows :

2

Mounting Type :

Through Hole

Contact Type :

Male Pin

Dielectric Withstanding Voltage :

1000VAC V

MIL Conformance :

No

Contact Length - Post :

0.177 4.50mm

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

IEC Conformance :

No

Style :

Board to Cable/Wire

DIN Conformance :

No

Reliability :

COMMERCIAL

Pitch - Mating :

0.100 2.54mm

Insulation Height :

0.681 17.30mm

Mount :

Through Hole

Filter Feature :

No

Body Breadth :

0.331 inch

Feature :

Keying Slot, Mounting Flange

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Connector Type :

Header

Insulation Color :

Gray

Contact Shape :

Square

Overall Contact Length :

0.713 18.10mm

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

UL Flammability Code :

94V-0

Fastening Type :

Latch Lock/Eject Hooks, Long

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Factory Lead Time :

7 Weeks

Color :

Grey

Length - Termination :

0.177 inch

Number of Positions Loaded :

All

Series :

SEK

Reference Standard :

UL

Contact Material :

COPPER ALLOY

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Post :

Tin

Rated Current (Signal) :

1A
