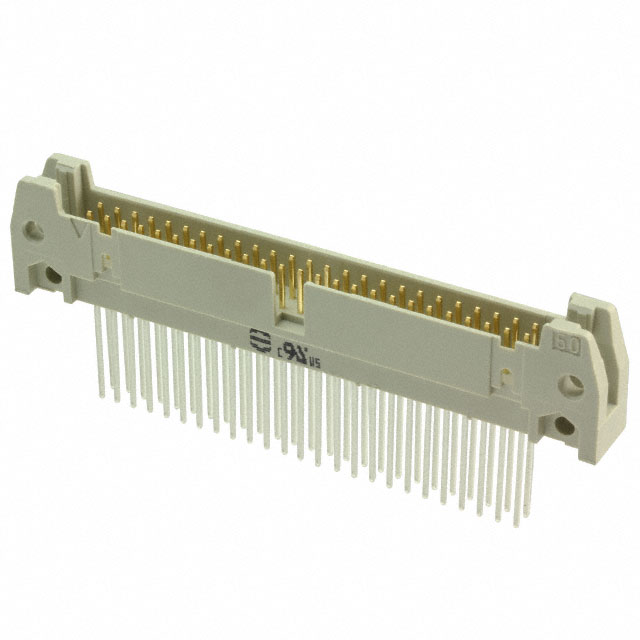

09185507927

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Contact Length - Post :

0.591 15.00mm

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Body Breadth :

0.331 inch

Color :

Beige

Number of Rows :

2

Contact Finish - Mating :

NOT SPECIFIED

Contact Type :

Male Pin

Mixed Contacts :

No

Mating Contact Pitch :

0.1 inch

Rated Current (Signal) :

1A

Contact Finish - Post :

Tin

Body Depth :

0.681 inch

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.100 2.54mm

Style :

Board to Cable/Wire

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Push-Pull

Contact Shape :

Square

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

Number of Positions :

50

Connector Type :

Header

Factory Lead Time :

7 Weeks

Operating Temperature :

-55°C~125°C

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Number of Conductors :

ONE

Mounting Type :

Through Hole

Pbfree Code :

yes

Contact Length - Mating :

0.228 5.80mm

Dielectric Withstanding Voltage :

1000VAC V

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

1000000000Ohm

IEC Conformance :

yes

Option :

GENERAL PURPOSE

Feature :

Keying Slot, Mounting Flange

Polarization Key :

CTR W/GUIDE SLOTS

Filter Feature :

No

Row Spacing - Mating :

0.100 (2.54mm)

Reference Standard :

UL

Termination :

Wire Wrap

Length - Termination :

0.591 inch

Packaging :

Bulk

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Insulation Color :

Gray

DIN Conformance :

yes

Orientation :

Straight

Series :

SEK

Mount :

Through Hole

Insulation Height :

0.681 17.30mm

Overall Contact Length :

1.126 28.60mm

Contact Material :

COPPER ALLOY
