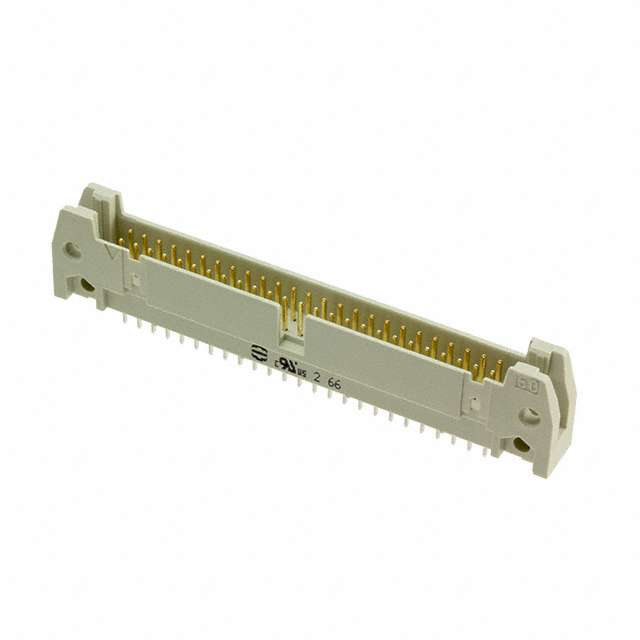

09185507922

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Option :

GENERAL PURPOSE

Mount :

Through Hole

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Termination :

Solder

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Color :

Grey

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Overall Contact Length :

0.713 18.10mm

UL Flammability Code :

94V-0

Connector Type :

Header

Mounting Type :

Through Hole

Number of Positions Loaded :

All

RoHS Status :

ROHS3 Compliant

Contact Type :

Male Pin

Pbfree Code :

yes

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Body Breadth :

0.335 inch

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Number of Conductors :

ONE

Factory Lead Time :

7 Weeks

Insulation Color :

Gray

Contact Finish - Mating :

NOT SPECIFIED

Reference Standard :

UL

Packaging :

Bulk

Body Depth :

0.681 inch

Number Of PCB Rows :

2

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Filter Feature :

No

Series :

SEK

IEC Conformance :

yes

Rated Current (Signal) :

2A

DIN Conformance :

yes

Contact Finish - Post :

Tin

Length - Termination :

0.177 inch

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Square

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Post :

0.177 4.50mm

Style :

Board to Cable/Wire

Number of Positions :

50

Contact Length - Mating :

0.240 6.10mm

Insulation Height :

0.681 17.30mm
