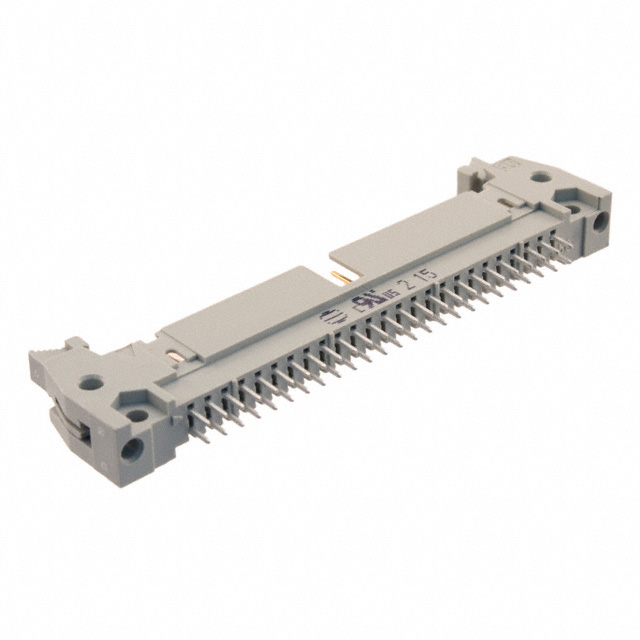

09185507914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Fastening Type :

Latch Lock/Eject Hooks, Short

Mount :

Through Hole

Number of Positions Loaded :

All

Factory Lead Time :

7 Weeks

Row Spacing - Mating :

0.100 (2.54mm)

Voltage - Rated AC :

350V

Rated Current (Signal) :

2A

Contact Shape :

Square

Flammability Rating :

UL94 V-0

Orientation :

Straight

Connector Type :

Header

Overall Contact Length :

0.650 16.51mm

Lead Length :

29mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Contact Plating :

Gold

Mating Contact Pitch :

0.1 inch

Number of Conductors :

ONE

Number of Rows :

2

Color :

Grey

Mounting Type :

Through Hole

Insulation Height :

0.681 17.30mm

Material Flammability Rating :

UL94 V-0

Depth :

8.5mm

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.335 inch

Contact Length - Mating :

0.228 5.80mm

Feature :

Keying Slot, Mounting Flange

Reference Standard :

UL

Number Of PCB Rows :

2

Number of Poles :

50

Packaging :

Bulk

Length :

83.1mm

Current Rating :

1A

REACH SVHC :

No SVHC

MIL Conformance :

No

Termination :

Solder

Insulation Resistance :

1GOhm

Contact Gender :

Male

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Polarization Key :

POLARIZED HOUSING

Contact Length - Post :

0.114 2.90mm

Style :

Board to Cable/Wire

DIN Conformance :

yes

Shrouding :

Shrouded - 4 Wall

Contact Resistance :

20mOhm

Pbfree Code :

yes

Voltage - Rated DC :

350V

Contact Finish - Mating :

NOT SPECIFIED

Contact Finish - Post :

Tin

Contact Type :

Male Pin

Working Voltage :

350V

Filter Feature :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Insulation Color :

Gray

Lead Pitch :

2.54mm

Series :

SEK

UL Flammability Code :

94V-0

Pitch - Mating :

0.100 2.54mm

IEC Conformance :

yes

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
