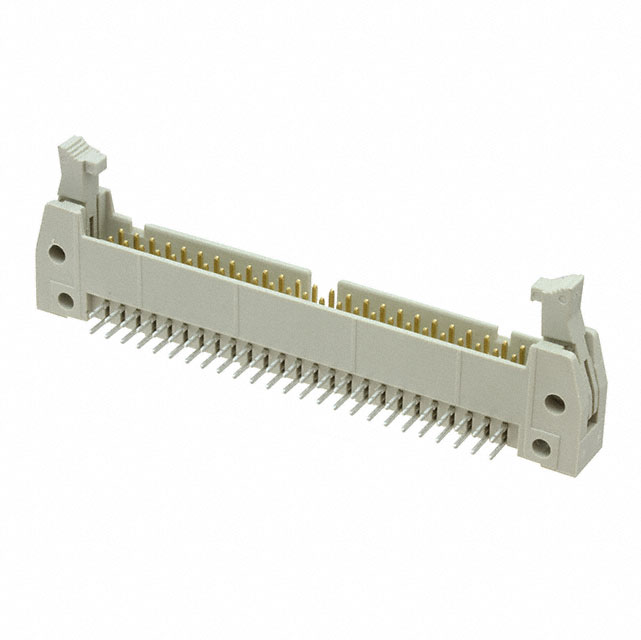

09185507903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

MIL Conformance :

No

Insulation Color :

Gray

Packaging :

Bulk

Color :

Grey

UL Flammability Code :

94V-0

Number of Positions :

50

Mounting Type :

Through Hole, Right Angle

Orientation :

RIGHT ANGLE

Mating Contact Pitch :

0.1 inch

Pbfree Code :

yes

Contact Type :

Male Pin

Mount :

Through Hole

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Rated Current (Signal) :

2A

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.335 inch

Contact Length - Mating :

0.240 6.10mm

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Voltage - Rated DC :

350V

Insulation Resistance :

1GOhm

Number Of PCB Rows :

2

Factory Lead Time :

7 Weeks

Contact Gender :

Male

Style :

Board to Cable/Wire

Feature :

Keying Slot, Mounting Flange

Series :

SEK

REACH SVHC :

No SVHC

Operating Temperature :

-55°C~125°C

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

2A

Termination :

Solder

Contact Length - Post :

0.114 2.90mm

DIN Conformance :

yes

Contact Resistance :

20mOhm

Length :

83.1mm

Number of Positions Loaded :

All

Number of Conductors :

ONE

Insulation Height :

0.335 8.51mm

Hole Diameter :

900 μm

IEC Conformance :

yes

Connector Type :

Header

Working Voltage :

350V

Number of Rows :

2

Contact Plating :

Gold

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

NOT SPECIFIED

Contact Material :

COPPER ALLOY

Depth :

25.75mm

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Reference Standard :

UL

HTS Code :

8536.69.40.40

Mixed Contacts :

No

Fastening Type :

Latch Lock/Eject Hooks, Long

Pitch - Mating :

0.100 2.54mm

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Voltage - Rated AC :

350V

Filter Feature :

No
