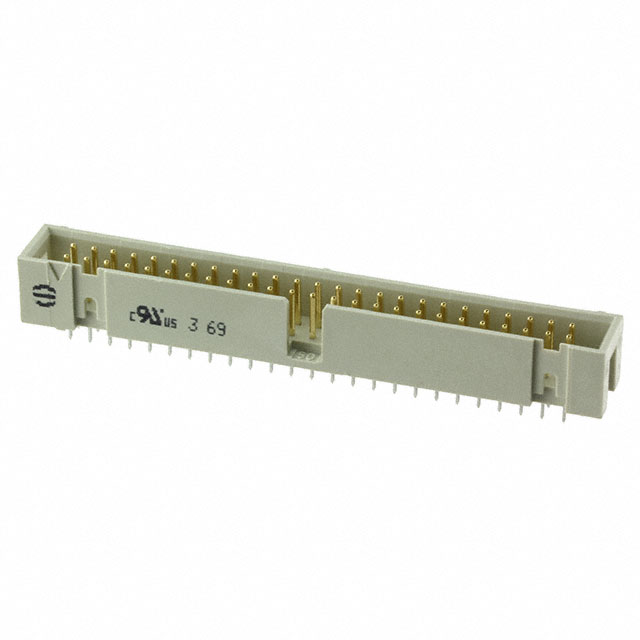

09185507324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Filter Feature :

No

Packaging :

Bulk

Connector Type :

Header

DIN Conformance :

yes

Depth :

9.2mm

Color :

Grey

Body Breadth :

0.366 inch

Current Rating :

1A

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Post :

Tin

Mixed Contacts :

No

IEC Conformance :

yes

Flammability Rating :

UL94 V-0

Voltage - Rated DC :

350V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Orientation :

Straight

Contact Material :

COPPER ALLOY

Reference Standard :

UL

Contact Gender :

Male

Contact Resistance :

20mOhm

Hole Diameter :

900 μm

Contact Plating :

Gold

Contact Finish - Mating :

NOT SPECIFIED

MIL Conformance :

No

Feature :

Keying Slot

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Number of Poles :

50

Lead Length :

29mm

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Rows :

2

Operating Temperature :

-55°C~125°C

Contact Length - Mating :

0.242 6.15mm

RoHS Status :

ROHS3 Compliant

Number Of PCB Rows :

2

Insulation Height :

0.350 8.89mm

Lead Pitch :

2.54mm

Insulation Resistance :

1GOhm

Pbfree Code :

yes

Insulation Color :

Gray

Contact Type :

Male Pin

Pitch - Mating :

0.100 2.54mm

Working Voltage :

350V

Rated Current (Signal) :

2A

Contact Length - Post :

0.114 2.90mm

PCB Contact Pattern :

RECTANGULAR

Voltage - Rated AC :

350V

Series :

SEK

Factory Lead Time :

7 Weeks

UL Flammability Code :

94V-0

Shrouding :

Shrouded - 4 Wall

Mating Contact Pitch :

0.1 inch

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Style :

Board to Cable/Wire

Termination :

Solder

Contact Shape :

Square

Length :

71.32mm

Fastening Type :

Latch Holder

Mount :

Through Hole
