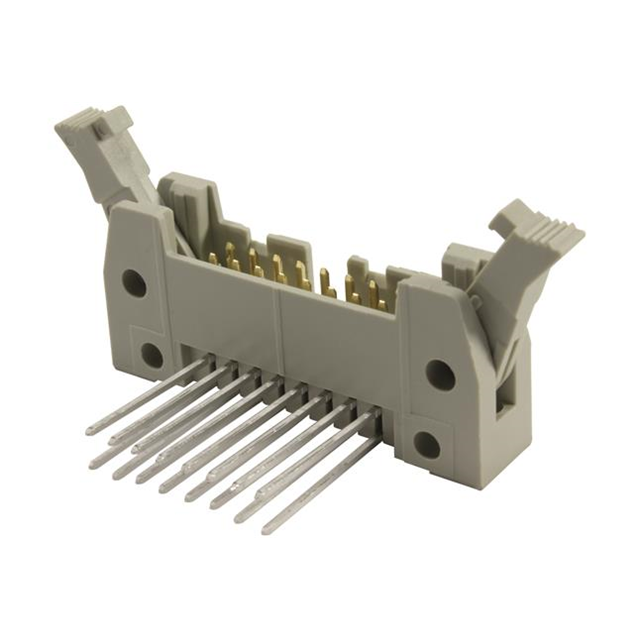

09185506906

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Feature :

Keying Slot, Mounting Flange

Pbfree Code :

yes

Filter Feature :

No

Mating Contact Pitch :

0.1 inch

Shrouding :

Shrouded - 4 Wall

Contact Length - Mating :

0.240 6.10mm

Contact Length - Post :

0.591 15.00mm

Pitch - Mating :

0.100 2.54mm

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

Body Depth :

0.681 inch

Factory Lead Time :

6 Weeks

Body Length or Diameter :

3.787 inch

Connector Type :

Header

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Shape :

Square

Style :

Board to Cable/Wire

Packaging :

Bulk

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

yes

Insulation Resistance :

1000000000Ohm

Contact Type :

Male Pin

Reference Standard :

UL

Series :

SEK

Insulation Height :

0.335 8.51mm

Number of Rows :

2

MIL Conformance :

No

Body Breadth :

0.331 inch

Contact Material :

COPPER ALLOY

Termination :

Wire Wrap

Mounting Type :

Through Hole, Right Angle

Number of Conductors :

ONE

HTS Code :

8536.69.40.40

Insulation Color :

Gray

Number Of PCB Rows :

2

Polarization Key :

CTR W/GUIDE SLOTS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

NOT SPECIFIED

Option :

GENERAL PURPOSE

Color :

Beige

Mixed Contacts :

No

Number of Positions Loaded :

All

Dielectric Withstanding Voltage :

1000VAC V

Length - Termination :

0.591 inch

ECCN Code :

EAR99

Rated Current (Signal) :

1A

IEC Conformance :

yes

Fastening Type :

Latch Lock/Eject Hooks, Long

Material Flammability Rating :

UL94 V-0

Number of Positions :

50

Row Spacing - Mating :

0.100 (2.54mm)

UL Flammability Code :

94V-0

Mount :

Through Hole

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant
