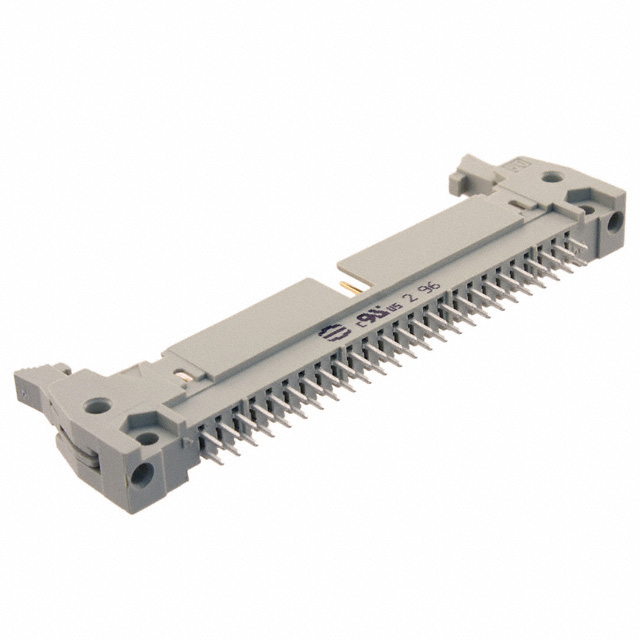

09185506904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Pitch - Mating :

0.100 2.54mm

Number Of PCB Rows :

2

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

1000VAC V

Series :

SEK

Termination :

Solder

Option :

GENERAL PURPOSE

Overall Contact Length :

0.650 16.51mm

Filter Feature :

No

Contact Current Rating :

1A

Height :

28.65mm

Packaging :

Tray

DIN Conformance :

yes

Voltage - Rated DC :

350V

Number of Positions Loaded :

All

Package / Case :

SMC

Mating Contact Pitch :

0.1 inch

Contact Finish - Post :

Tin

Feature :

Keying Slot, Mounting Flange

Contact Length - Mating :

0.228 5.80mm

Contact Shape :

Square

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Factory Lead Time :

4 Weeks

Working Voltage :

350V

Lead Free :

Lead Free

Insulation Height :

0.681 17.30mm

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

1GOhm

Length :

83.1mm

Contact Material :

COPPER ALLOY

Gender :

Male

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Plating :

Gold

Contact Length - Post :

0.114 2.90mm

Polarization Key :

CTR W/GUIDE SLOTS

Rated Current (Signal) :

1A

Fastening Type :

Latch Lock/Eject Hooks, Long

Number of Poles :

50

Hole Diameter :

900 μm

Connector Type :

Header

Style :

Board to Cable/Wire

Pbfree Code :

yes

Color :

Grey

Contact Type :

Male Pin

UL Flammability Code :

94V-0

Orientation :

Straight

Number of Rows :

2

MIL Conformance :

No

Mixed Contacts :

No

Reference Standard :

UL

Mount :

Through Hole

REACH SVHC :

No SVHC

Mounting Type :

Through Hole

Flammability Rating :

UL94 V-0

Current Rating :

1A

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Mating :

NOT SPECIFIED

Voltage - Rated AC :

350V

Material Flammability Rating :

UL94 V-0

Depth :

8.5mm

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Shrouding :

Shrouded - 4 Wall

Contact Resistance :

20mOhm

Width :

96.2mm

Lead Pitch :

2.54mm

Lead Length :

29mm

Insulation Color :

Gray

IEC Conformance :

No

Operating Temperature :

-55°C~125°C

Body Breadth :

0.331 inch
