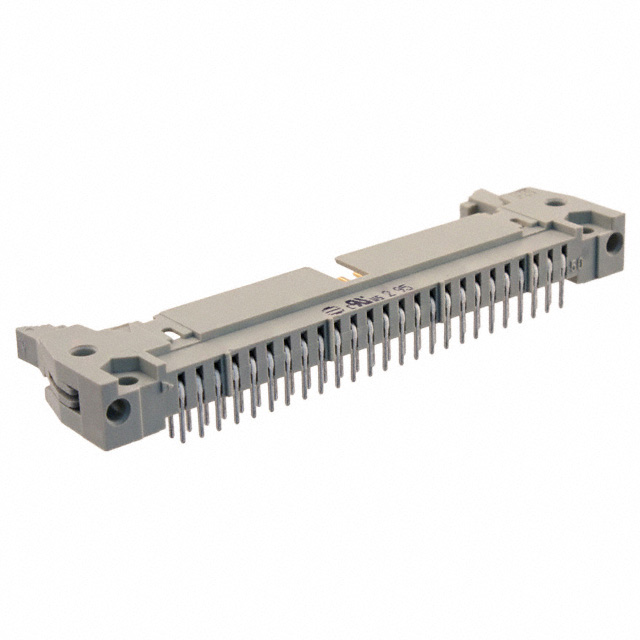

09185506903
Or copy the link below:
- Mfr.Part #
- 09185506903
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 2.54MM
- Stock
- 34
- In Stock ：
- 34
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Contact Length - Post :
- 0.114 2.90mm
- PCB Contact Pattern :
- RECTANGULAR
- Contact Shape :
- Square
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- DIN Conformance :
- yes
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Number Of PCB Rows :
- 2
- UL Flammability Code :
- 94V-0
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Rated Current (Signal) :
- 2A
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Poles :
- 50
- Reliability :
- COMMERCIAL
- Shrouding :
- Shrouded - 4 Wall
- Option :
- GENERAL PURPOSE
- Voltage - Rated DC :
- 350V
- IEC Conformance :
- yes
- Series :
- SEK
- REACH SVHC :
- No SVHC
- ECCN Code :
- EAR99
- Body Breadth :
- 0.335 inch
- Contact Length - Mating :
- 0.240 6.10mm
- Color :
- Grey
- Contact Gender :
- Male
- Hole Diameter :
- 900 μm
- Orientation :
- RIGHT ANGLE
- Length :
- 83.1mm
- Termination :
- Solder
- Depth :
- 25.75mm
- Voltage - Rated AC :
- 350V
- Polarization Key :
- POLARIZED HOUSING
- Style :
- Board to Cable/Wire
- Filter Feature :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~125°C
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header
- Contact Current Rating :
- 1A
- Insulation Height :
- 0.335 8.51mm
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Mounting Type :
- Through Hole, Right Angle
- Feature :
- Keying Slot, Mounting Flange
- Factory Lead Time :
- 4 Weeks
- Working Voltage :
- 350V
- HTS Code :
- 8536.69.40.40
- Mating Contact Pitch :
- 0.1 inch
- Packaging :
- Tray
- Insulation Resistance :
- 1GOhm
- Contact Resistance :
- 20mOhm
- Current Rating :
- 2A
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Insulation Color :
- Gray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Lead Pitch :
- 2.54mm
- Reference Standard :
- UL
- Datasheets
- 09185506903
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.335 8.51mm Height
09185506903 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number SEK belongs to the SEK Series.Further, there are features such as STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED, to name only a few.In many ways, it is more powerful due to its Keying Slot, Mounting Flange feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
09185506903 Features
SEK series
09185506903 Applications
There are a lot of HARTING
09185506903 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
