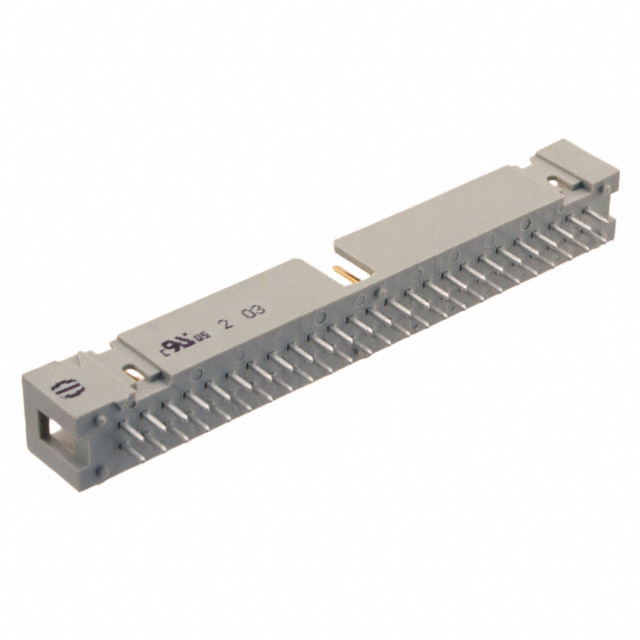

09185506324
Or copy the link below:
- Mfr.Part #
- 09185506324
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 50POS 2.54MM
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Contact Shape :
- Square
- Number of Conductors :
- ONE
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Gender :
- Male
- Contact Material :
- COPPER ALLOY
- IEC Conformance :
- yes
- Pbfree Code :
- yes
- Insulation Resistance :
- 1GOhm
- Depth :
- 9.2mm
- Filter Feature :
- No
- MIL Conformance :
- No
- Fastening Type :
- Latch Holder
- Contact Finish - Mating :
- NOT SPECIFIED
- Working Voltage :
- 350V
- UL Flammability Code :
- 94V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- DIN Conformance :
- yes
- Option :
- GENERAL PURPOSE
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Style :
- Board to Cable/Wire
- Length :
- 9.3mm
- Number of Positions Loaded :
- All
- Flammability Rating :
- UL94 V-0
- Feature :
- Keying Slot
- Contact Resistance :
- 20mOhm
- Connector Type :
- Header
- Contact Current Rating :
- 1A
- Pitch - Mating :
- 0.100 2.54mm
- Contact Plating :
- Gold
- Contact Length - Post :
- 0.114 2.90mm
- Insulation Height :
- 0.350 8.89mm
- Hole Diameter :
- 900 μm
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 2A
- Width :
- 71.3mm
- Color :
- Grey
- Number Of PCB Rows :
- 2
- Voltage - Rated DC :
- 350V
- Voltage - Rated AC :
- 350V
- Shrouding :
- Shrouded - 4 Wall
- Additional Feature :
- STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Operating Temperature :
- -55°C~125°C
- Rated Current (Signal) :
- 2A
- Body Breadth :
- 0.366 inch
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- Straight
- Series :
- SEK
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 4 Weeks
- Test Voltage :
- 1kV
- Contact Type :
- Male Pin
- Number of Rows :
- 2
- Lead Length :
- 29mm
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- REACH SVHC :
- No SVHC
- Number of Poles :
- 50
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Mount :
- Through Hole
- Polarization Key :
- POLARIZED HOUSING
- Insulation Color :
- Gray
- Mating Contact Pitch :
- 0.1 inch
- Housing Material :
- Polyester
- Mounting Type :
- Through Hole
- Height :
- 12.35mm
- Lead Pitch :
- 2.54mm
- Contact Finish - Post :
- Tin
- Reference Standard :
- UL
- Datasheets
- 09185506324
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.350 8.89mm Height
09185506324 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the SEK Series.Moreover, there are a number of other features, including STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED, to name just a few.In many ways, its Keying Slot feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
09185506324 Features
SEK series
09185506324 Applications
There are a lot of HARTING
09185506324 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
