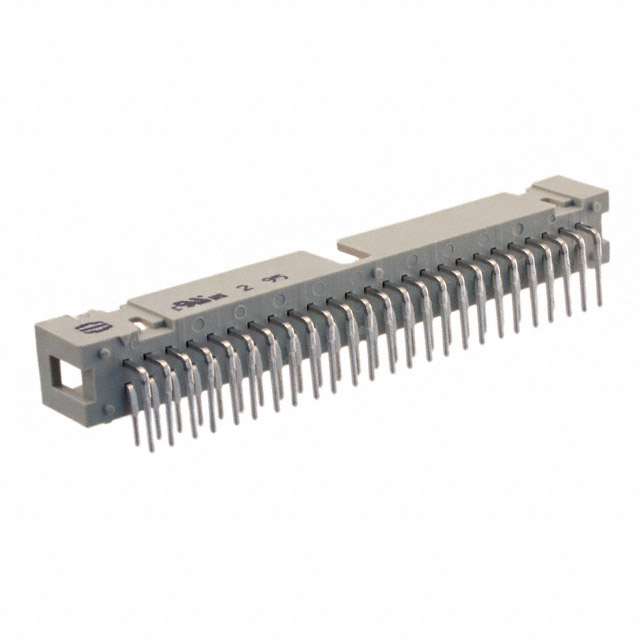

09185506323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

HTS Code :

8536.69.40.40

Contact Gender :

Male

ECCN Code :

EAR99

Number of Positions Loaded :

All

Voltage - Rated DC :

350V

MIL Conformance :

No

Factory Lead Time :

10 Weeks

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Holder

Reliability :

COMMERCIAL

Contact Plating :

Gold

Body Depth :

0.48 inch

Number of Positions :

50

Contact Type :

Male Pin

Mounting Type :

Through Hole, Right Angle

Packaging :

Bulk

Insulation Color :

Gray

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

DIN Conformance :

yes

Series :

SEK

Contact Shape :

Square

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Mating Information :

No

Color :

Grey

Contact Finish - Mating :

NOT SPECIFIED

Contact Current Rating :

1A

Voltage - Rated AC :

350V

Orientation :

RIGHT ANGLE

Length - Termination :

0.114 inch

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Style :

Board to Cable/Wire

Housing Material :

Polyester

Current Rating :

1A

Dielectric Withstanding Voltage :

1000VAC V

Contact Material :

COPPER ALLOY

Insulation Resistance :

1GOhm

Connector Type :

Header

Rated Current (Signal) :

1A

Number of Conductors :

ONE

Mixed Contacts :

No

Lead Pitch :

2.54mm

Contact Length - Mating :

0.242 6.15mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pbfree Code :

yes

Filter Feature :

No

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Termination :

Solder

Pitch - Mating :

0.100 2.54mm

Number Of PCB Rows :

2

Contact Length - Post :

0.114 2.90mm

Contact Resistance :

20mOhm

Number of Rows :

2

UL Flammability Code :

94V-0

IEC Conformance :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

CTR W/GUIDE SLOTS

Option :

GENERAL PURPOSE

Reference Standard :

UL

Feature :

Keying Slot

Mount :

Through Hole

Width :

71.3mm

Insulation Height :

0.366 9.30mm
