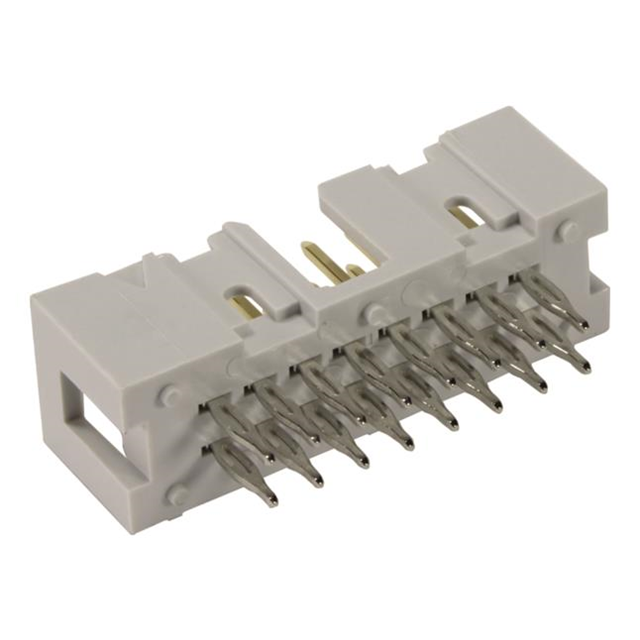

09185505329

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.1 inch

Option :

GENERAL PURPOSE

Connector Type :

Header

IEC Conformance :

No

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Number of Positions Loaded :

All

Insulation Resistance :

1000000000Ohm

Contact Finish - Post :

Tin

ECCN Code :

EAR99

Body Breadth :

0.366 inch

Contact Length - Post :

0.217 5.51mm

Style :

Board to Cable/Wire

Pbfree Code :

yes

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Series :

SEK

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Pitch - Mating :

0.100 2.54mm

Packaging :

Bulk

MIL Conformance :

No

Feature :

Keying Slot

Insulation Color :

Gray

Operating Temperature (Max) :

105°C

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Row Spacing - Mating :

0.100 (2.54mm)

Color :

Grey

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

HTS Code :

8536.69.40.40

Rated Current (Signal) :

2A

Insulation Height :

0.350 8.89mm

Reliability :

COMMERCIAL

Reference Standard :

UL

Mount :

Through Hole

Number of Conductors :

ONE

Filter Feature :

No

Contact Material :

COPPER ALLOY

Number of Positions :

50

Operating Temperature (Min) :

-55°C

DIN Conformance :

yes

Contact Finish - Mating :

Gold

Fastening Type :

Push-Pull

Plating Thickness :

30μin

Contact Length - Mating :

0.240 6.10mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square

Mounting Type :

Through Hole

Contact Type :

Male Pin

Factory Lead Time :

7 Weeks

Mixed Contacts :

No

Number Of PCB Rows :

2

Termination :

Press-Fit, Solder

Material Flammability Rating :

UL94 V-0
