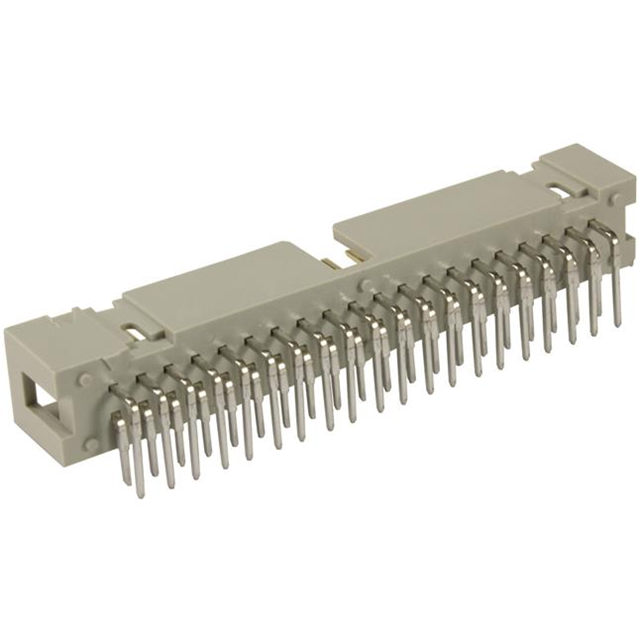

09185505323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.100 (2.54mm)

Contact Shape :

Square

Contact Finish - Post :

Tin

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Polarization Key :

CTR W/GUIDE SLOTS

Rated Current (Signal) :

1A

Number of Positions Loaded :

All

Packaging :

Bulk

Operating Temperature :

-55°C~125°C

Termination :

Solder

Reference Standard :

UL

Fastening Type :

Latch Holder

Dielectric Withstanding Voltage :

1000VAC V

Mount :

Through Hole

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Connector Type :

Header

Contact Length - Post :

0.114 2.90mm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Pitch - Mating :

0.100 2.54mm

Gender :

Male

Series :

SEK

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Shrouding :

Shrouded - 4 Wall

REACH SVHC :

No SVHC

Number of Positions :

50

Pbfree Code :

yes

Contact Length - Mating :

0.242 6.15mm

Style :

Board to Cable/Wire

RoHS Status :

ROHS3 Compliant

Length - Termination :

0.114 inch

Option :

GENERAL PURPOSE

Number of Rows :

2

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

DIN Conformance :

yes

IEC Conformance :

yes

Color :

Grey

Insulation Color :

Gray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Mating Contact Pitch :

0.1 inch

Insulation Resistance :

1000000000Ohm

Feature :

Keying Slot

Number of Conductors :

ONE

Plating Thickness :

30μin

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

Gold

Insulation Height :

0.366 9.30mm

Mixed Contacts :

No

Body Depth :

0.48 inch

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

10 Weeks
