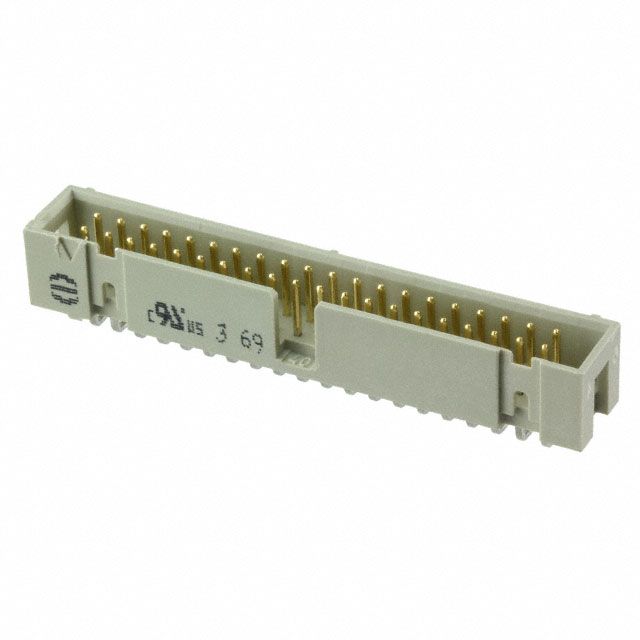

09185407323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pitch - Mating :

0.100 2.54mm

Mount :

Through Hole

Number of Positions Loaded :

All

Series :

SEK

Flammability Rating :

UL94 V-0

Lead Pitch :

2.54mm

Contact Shape :

Square

Number Of PCB Rows :

2

Style :

Board to Cable/Wire

Contact Gender :

Male

Insulation Height :

0.366 9.30mm

Mixed Contacts :

No

Number of Conductors :

ONE

Number of Poles :

40

Packaging :

Bulk

Contact Finish - Mating :

NOT SPECIFIED

Polarization Key :

CTR W/GUIDE SLOTS

Depth :

11.99mm

Connector Type :

Header

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Contact Length - Post :

0.114 2.90mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Hole Diameter :

900 μm

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Latch Holder

Row Spacing - Mating :

0.100 (2.54mm)

Mating Contact Pitch :

0.1 inch

REACH SVHC :

No SVHC

Rated Current (Signal) :

1A

Reliability :

COMMERCIAL

Durability :

50 Cycles

Contact Resistance :

20mOhm

Shrouding :

Shrouded - 4 Wall

Insulation Resistance :

1GOhm

Voltage - Rated AC :

350V

Number of Rows :

2

Length :

58.42mm

Feature :

Keying Slot

Reference Standard :

UL

UL Flammability Code :

94V-0

Mounting Type :

Through Hole, Right Angle

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Color :

Grey

IEC Conformance :

yes

Factory Lead Time :

10 Weeks

Option :

GENERAL PURPOSE

Contact Type :

Male Pin

Working Voltage :

350V

Filter Feature :

No

Orientation :

RIGHT ANGLE

Current Rating :

2A

Dielectric Withstanding Voltage :

1000VAC V

Voltage - Rated DC :

350V

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Termination :

Solder

Contact Plating :

Gold

Insulation Color :

Gray

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Length - Mating :

0.242 6.15mm

DIN Conformance :

yes
