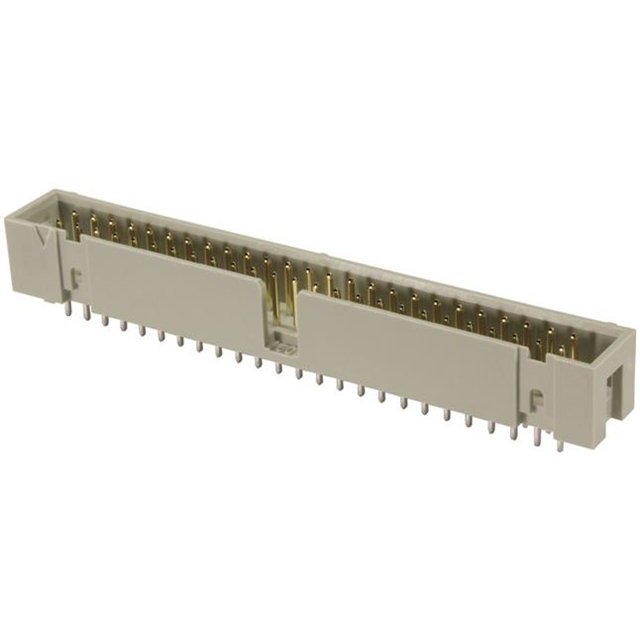

09185407322

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Filter Feature :

No

Reference Standard :

UL

Termination :

Solder

Color :

Grey

Orientation :

Straight

UL Flammability Code :

94V-0

Factory Lead Time :

7 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Contact Length - Mating :

0.240 6.10mm

IEC Conformance :

yes

Contact Type :

Male Pin

Number of Positions :

40

Length :

58.42mm

Durability :

50 Cycles

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

JESD-609 Code :

e3

Contact Finish - Mating :

AU

Number of Rows :

2

Mating Contact Pitch :

0.1 inch

Rated Current (Signal) :

2A

Contact Finish - Post :

Tin

MIL Conformance :

No

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Gray

Contact Shape :

Square

Packaging :

Bulk

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mount :

Through Hole

Number of Conductors :

ONE

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.177 4.50mm

Series :

SEK

Connector Type :

Header

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Fastening Type :

Latch Holder

Reliability :

COMMERCIAL

DIN Conformance :

yes

Number Of PCB Rows :

2

Body Breadth :

0.366 inch

Row Spacing - Mating :

0.100 (2.54mm)

Feature :

Keying Slot

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Depth :

9.2mm

Pitch - Mating :

0.100 2.54mm

Insulation Resistance :

1000000000Ohm

Insulation Height :

0.350 8.89mm
