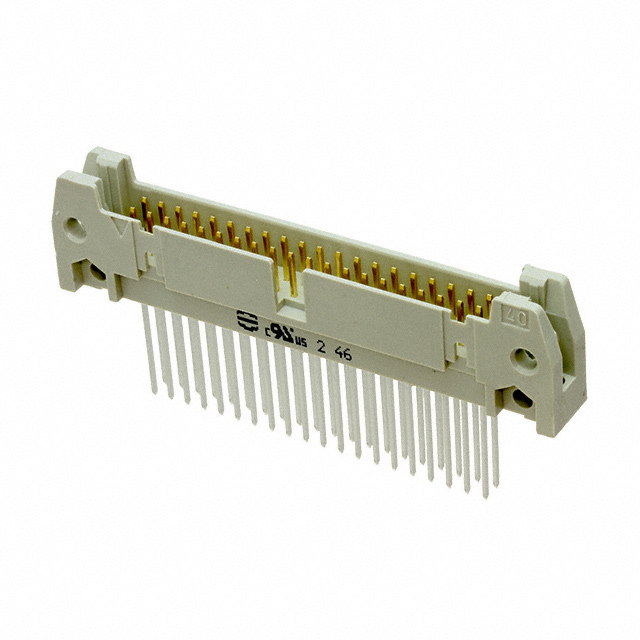

09185406927

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Mount :

Through Hole

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Contact Finish - Mating :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Insulation Height :

0.681 17.30mm

Dielectric Withstanding Voltage :

1000VAC V

PCB Contact Pattern :

RECTANGULAR

Number of Positions Loaded :

All

Overall Contact Length :

1.126 28.60mm

Polarization Key :

CTR W/GUIDE SLOTS

Current Rating :

2A

Rated Current (Signal) :

1A

Contact Finish - Post :

Tin

Factory Lead Time :

7 Weeks

Body Breadth :

0.331 inch

Length - Termination :

0.591 inch

Number of Rows :

2

DIN Conformance :

yes

Operating Temperature :

-55°C~125°C

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Contact Material :

COPPER ALLOY

Color :

Beige

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

Number of Conductors :

ONE

Mixed Contacts :

No

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole

Pbfree Code :

yes

Series :

SEK

Contact Length - Post :

0.591 15.00mm

IEC Conformance :

yes

Insulation Resistance :

1000000000Ohm

Style :

Board to Cable/Wire

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Gray

UL Flammability Code :

94V-0

Reference Standard :

UL

Row Spacing - Mating :

0.100 (2.54mm)

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Square

Contact Length - Mating :

0.228 5.80mm

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.681 inch

Number of Positions :

40

Termination :

Wire Wrap

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Packaging :

Bulk

Connector Type :

Header
