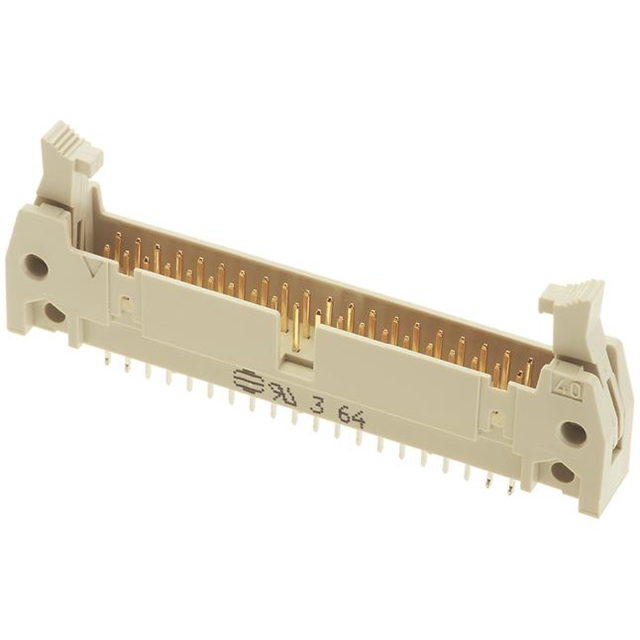

09185406004
Or copy the link below:
- Mfr.Part #
- 09185406004
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 40POS 2.54MM
- Stock
- 6,206
- In Stock ：
- 6,206
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Contact Length - Post :
- 0.114 2.90mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Rows :
- 2
- Contact Finish - Post :
- Tin
- ECCN Code :
- EAR99
- Insulation Height :
- 0.681 17.30mm
- Feature :
- Keying Slot, Mounting Flange
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Kinked Pin, Solder
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Color :
- Beige
- Contact Material :
- COPPER ALLOY
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Material Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- 0.650 16.51mm
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- Number of Positions :
- 40
- Operating Temperature :
- -55°C~125°C
- Contact Length - Mating :
- 0.240 6.10mm
- Insulation Color :
- Gray
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- Series :
- SEK
- Contact Shape :
- Square
- Datasheets
- 09185406004
SEK Series 2-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Polybutylene Terephthalate (PBT), Glass Filled 40-Position Board to Cable/Wire 0.681 17.30mm Height
09185406004 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the SEK Series.There are a number of advantages to its Keying Slot, Mounting Flange feature.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
09185406004 Features
SEK series
09185406004 Applications
There are a lot of HARTING
09185406004 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
