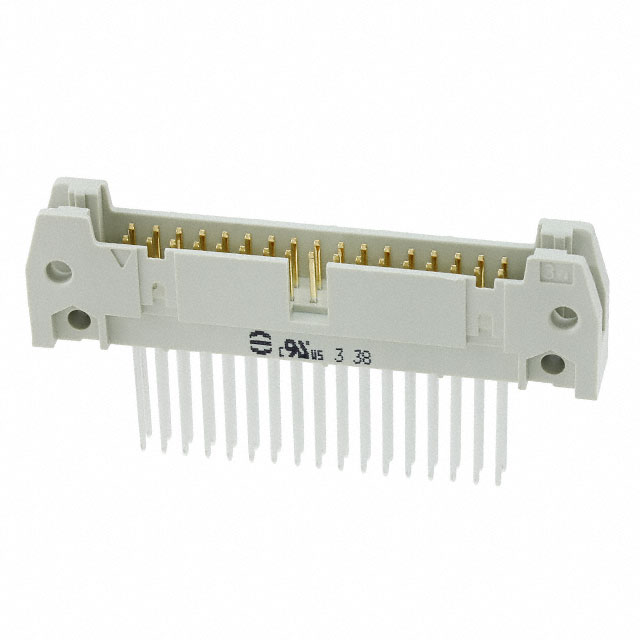

09185347927

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

ECCN Code :

EAR99

Number of Rows :

2

Option :

GENERAL PURPOSE

Contact Shape :

Square

Pitch - Mating :

0.100 2.54mm

Contact Material :

COPPER ALLOY

Mount :

Through Hole

Number of Positions :

34

Color :

Beige

Number Of PCB Rows :

2

Factory Lead Time :

6 Weeks

Termination :

Wire Wrap

Insulation Resistance :

1000000000Ohm

Contact Length - Post :

0.591 15.00mm

Insulation Color :

Gray

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

DIN Conformance :

yes

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

yes

Rated Current (Signal) :

1A

Connector Type :

Header

Pbfree Code :

yes

Packaging :

Bulk

Orientation :

Straight

HTS Code :

8536.69.40.40

Feature :

Keying Slot, Mounting Flange

Filter Feature :

No

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Reference Standard :

UL

Overall Contact Length :

1.126 28.60mm

MIL Conformance :

No

Length - Termination :

0.591 inch

Body Depth :

0.681 inch

Dielectric Withstanding Voltage :

1000VAC V

Number of Positions Loaded :

All

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

50 Cycles

Contact Length - Mating :

0.228 5.80mm

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Fastening Type :

Push-Pull

Row Spacing - Mating :

0.100 (2.54mm)

Series :

SEK

Additional Feature :

STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED

Contact Type :

Male Pin

Body Breadth :

0.331 inch

Style :

Board to Cable/Wire

Operating Temperature :

-55°C~125°C

Contact Finish - Post :

Tin

UL Flammability Code :

94V-0

Contact Finish - Mating :

NOT SPECIFIED

Insulation Height :

0.681 17.30mm

Polarization Key :

CTR W/GUIDE SLOTS

RoHS Status :

ROHS3 Compliant
