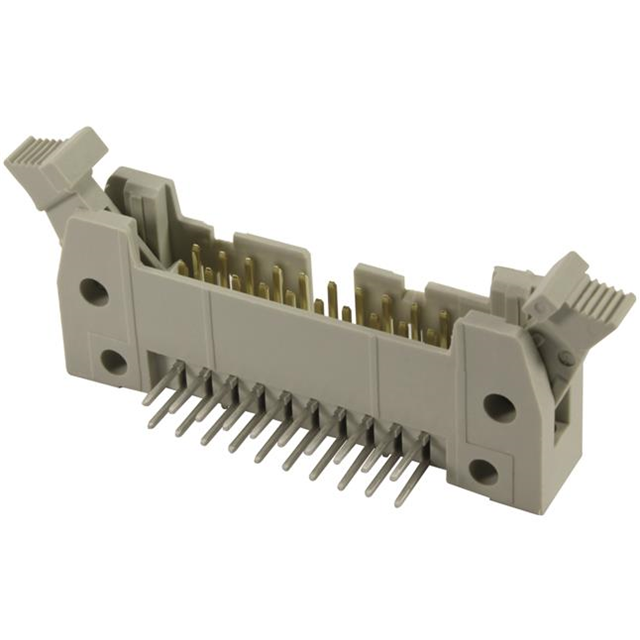

09185347911

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Insulation Height :

0.335 8.51mm

DIN Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Series :

SEK

Number of Positions :

34

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Feature :

Keying Slot, Mounting Flange

Reference Standard :

UL

Option :

GENERAL PURPOSE

Polarization Key :

CTR W/GUIDE SLOTS

IEC Conformance :

yes

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Termination :

Solder

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.331 inch

Durability :

50 Cycles

Fastening Type :

Latch Lock/Eject Hooks, Short

Number of Rows :

2

Insulation Resistance :

1000000000Ohm

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Factory Lead Time :

7 Weeks

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Shape :

Square

Mixed Contacts :

No

Insulation Color :

Gray

Connector Type :

Header

Number of Conductors :

ONE

Pbfree Code :

yes

Row Spacing - Mating :

0.100 (2.54mm)

Mounting Type :

Through Hole, Right Angle

Contact Length - Post :

0.177 4.50mm

Style :

Board to Cable/Wire

Dielectric Withstanding Voltage :

1000VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

1A

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Filter Feature :

No

Body Depth :

0.681 inch

Packaging :

Bulk

Length - Termination :

0.117 inch

Contact Length - Mating :

0.240 6.10mm

Color :

Grey

MIL Conformance :

No

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.1 inch

Number of Positions Loaded :

All

Operating Temperature :

-55°C~125°C

Shrouding :

Shrouded - 4 Wall

Contact Material :

COPPER ALLOY
