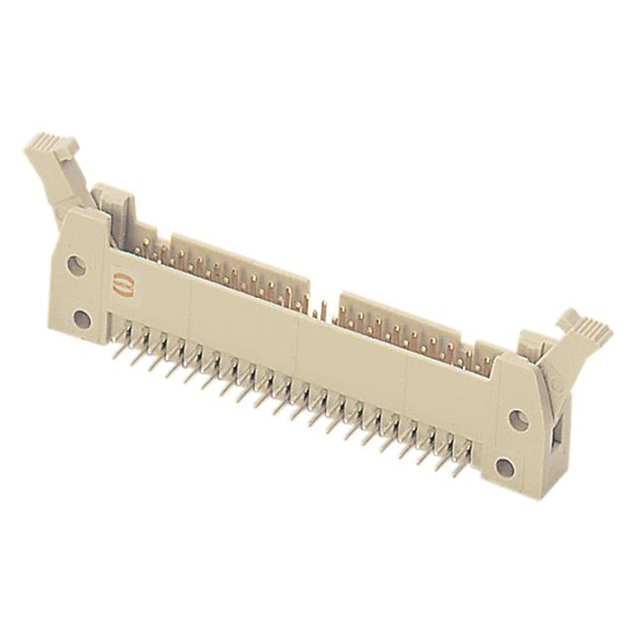

09185347903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Operating Temperature :

-55°C~125°C

Fastening Type :

Latch Lock/Eject Hooks, Long

IEC Conformance :

yes

Insulation Height :

0.335 8.51mm

PCB Contact Pattern :

RECTANGULAR

Durability :

50 Cycles

Option :

GENERAL PURPOSE

Number of Rows :

2

Series :

SEK

DIN Conformance :

yes

Number Of PCB Rows :

2

Pbfree Code :

yes

Number of Positions Loaded :

All

Contact Finish - Mating :

NOT SPECIFIED

Mating Contact Pitch :

0.1 inch

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

Pitch - Mating :

0.100 2.54mm

Rated Current (Signal) :

2A

Insulation Color :

Gray

Body Breadth :

0.335 inch

Material Flammability Rating :

UL94 V-0

Color :

Grey

Connector Type :

Header

Mixed Contacts :

No

Reference Standard :

UL

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Contact Length - Mating :

0.240 6.10mm

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Number of Positions :

34

Packaging :

Bulk

Termination :

Solder

Mount :

Through Hole

Contact Type :

Male Pin

Depth :

25.75mm

HTS Code :

8536.69.40.40

Factory Lead Time :

7 Weeks

Filter Feature :

No

Row Spacing - Mating :

0.100 (2.54mm)

Length :

62.8mm

Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

1000000000Ohm

Mounting Type :

Through Hole, Right Angle

Shrouding :

Shrouded - 4 Wall

Feature :

Keying Slot, Mounting Flange

Number of Conductors :

ONE

Contact Material :

COPPER ALLOY

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Contact Length - Post :

0.114 2.90mm

MIL Conformance :

No

Gender :

Male
