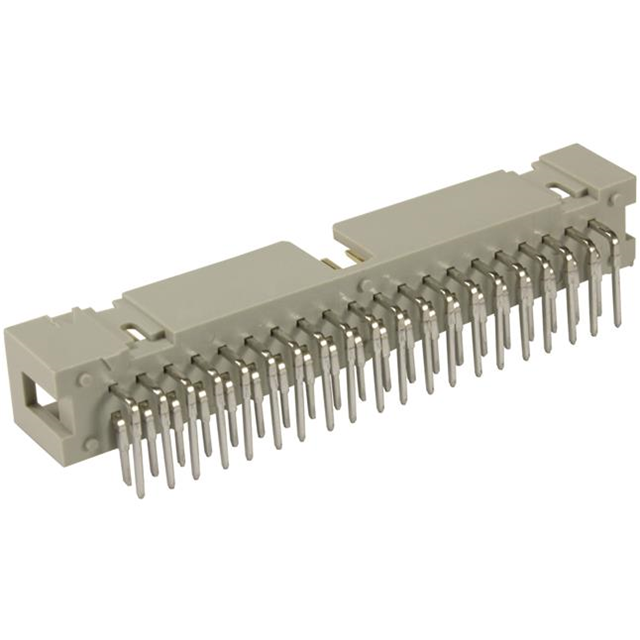

09185347323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Resistance :

1GOhm

Reliability :

COMMERCIAL

Number of Poles :

34

Contact Resistance :

20mOhm

Working Voltage :

350V

DIN Conformance :

yes

Number of Rows :

2

Number Of PCB Rows :

2

Series :

SEK

Current Rating :

1A

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Voltage - Rated AC :

350V

Feature :

Keying Slot

Connector Type :

Header

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole, Right Angle

Fastening Type :

Latch Holder

Contact Finish - Mating :

NOT SPECIFIED

Packaging :

Bulk

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.114 2.90mm

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

REACH SVHC :

No SVHC

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Plating :

Gold

Color :

Grey

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Voltage - Rated DC :

350V

Hole Diameter :

900 μm

Operating Temperature :

-55°C~125°C

IEC Conformance :

yes

Filter Feature :

No

Contact Length - Mating :

0.242 6.15mm

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

10 Weeks

Contact Type :

Male Pin

Termination :

Solder

UL Flammability Code :

94V-0

Pbfree Code :

yes

Durability :

50 Cycles

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Depth :

11.99mm

Insulation Height :

0.366 9.30mm

Shrouding :

Shrouded - 4 Wall

Orientation :

RIGHT ANGLE

Style :

Board to Cable/Wire

Mount :

Through Hole

Lead Pitch :

2.54mm

Flammability Rating :

UL94 V-0

Contact Shape :

Square

Dielectric Withstanding Voltage :

1000VAC V

Polarization Key :

CTR W/GUIDE SLOTS

Length :

50.8mm

Insulation Color :

Gray

Number of Positions Loaded :

All

Rated Current (Signal) :

1A

Number of Conductors :

ONE
