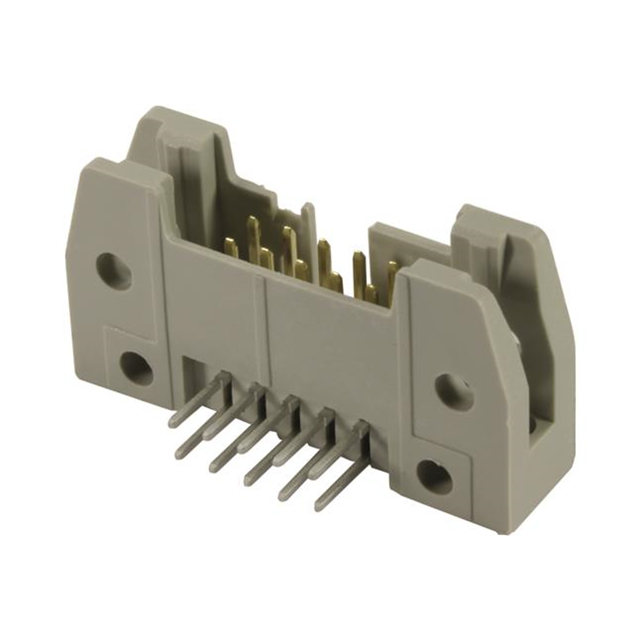

09185346923

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Termination :

Solder

Pbfree Code :

yes

Filter Feature :

No

Series :

SEK

Number of Positions Loaded :

All

Number of Rows :

2

Contact Shape :

Square

Factory Lead Time :

7 Weeks

Color :

Grey

Mating Contact Pitch :

0.1 inch

Contact Length - Mating :

0.240 6.10mm

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Number of Conductors :

ONE

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Current Rating :

1A

Row Spacing - Mating :

0.100 (2.54mm)

PCB Contact Pattern :

RECTANGULAR

Insulation Color :

Gray

Mixed Contacts :

No

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

Style :

Board to Cable/Wire

Insulation Resistance :

1000000000Ohm

Fastening Type :

Push-Pull

DIN Conformance :

yes

Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Number of Positions :

34

Feature :

Keying Slot, Mounting Flange

Depth :

17.3mm

Shrouding :

Shrouded - 4 Wall

Packaging :

Bulk

Mount :

Through Hole

Rated Current (Signal) :

2A

Reference Standard :

UL

UL Flammability Code :

94V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Body Breadth :

0.335 inch

Gender :

Male

Operating Temperature :

-55°C~125°C

Contact Type :

Male Pin

Contact Finish - Mating :

NOT SPECIFIED

Number Of PCB Rows :

2

ECCN Code :

EAR99

IEC Conformance :

yes

Pitch - Mating :

0.100 2.54mm

HTS Code :

8536.69.40.40

Contact Length - Post :

0.114 2.90mm

Mounting Type :

Through Hole, Right Angle

Length :

62.8mm

Insulation Height :

0.335 8.51mm

MIL Conformance :

No

Housing Material :

Polyester

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL
